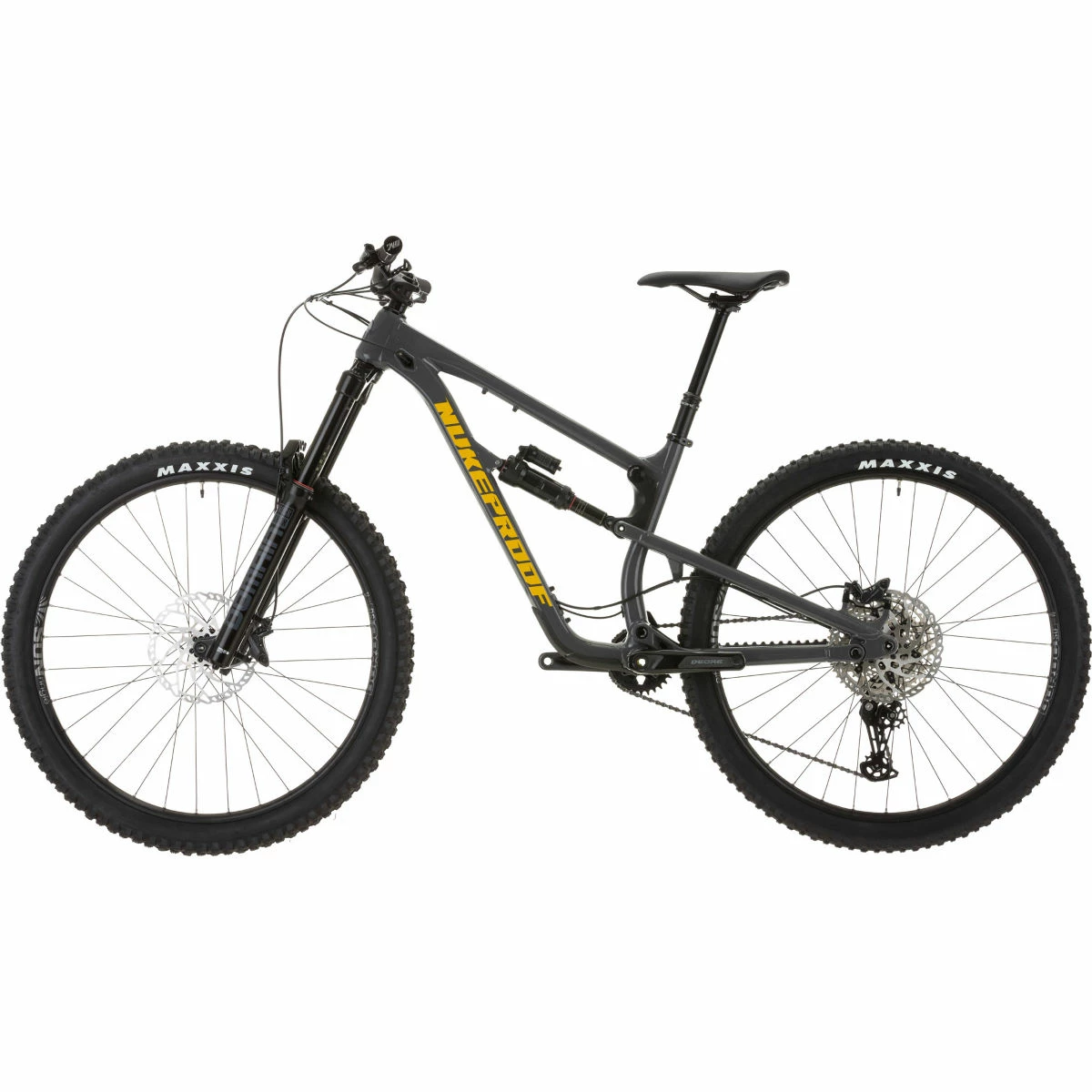

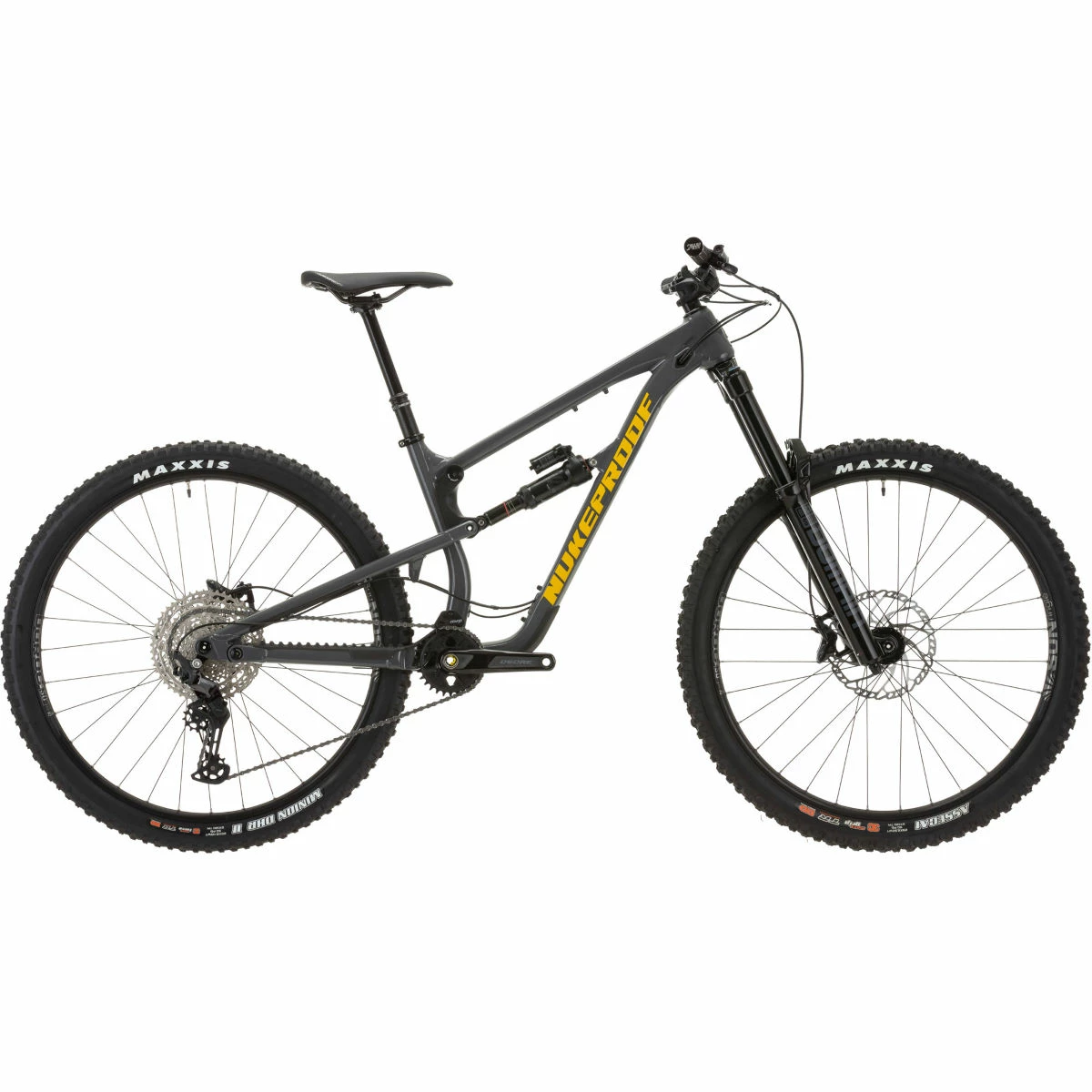

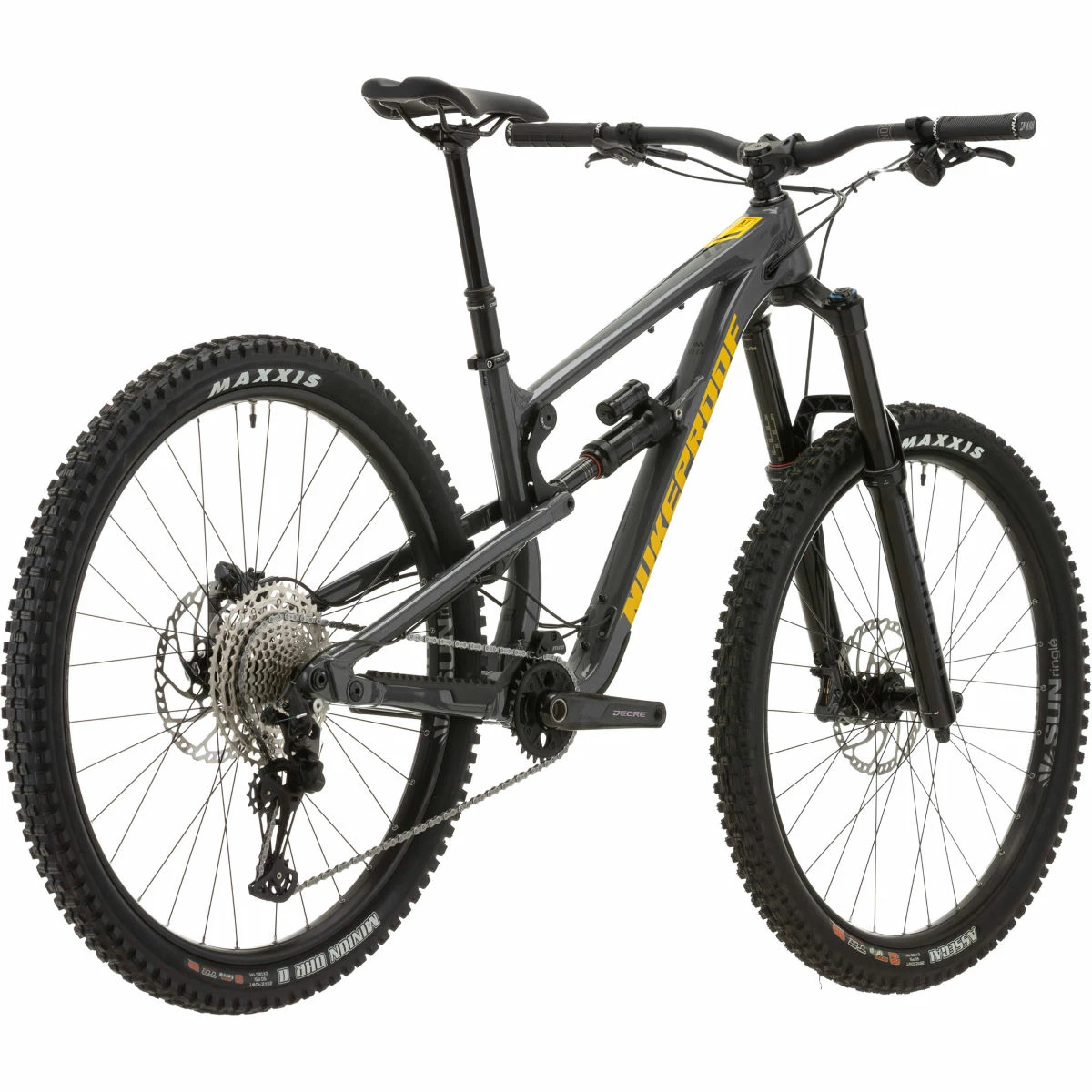

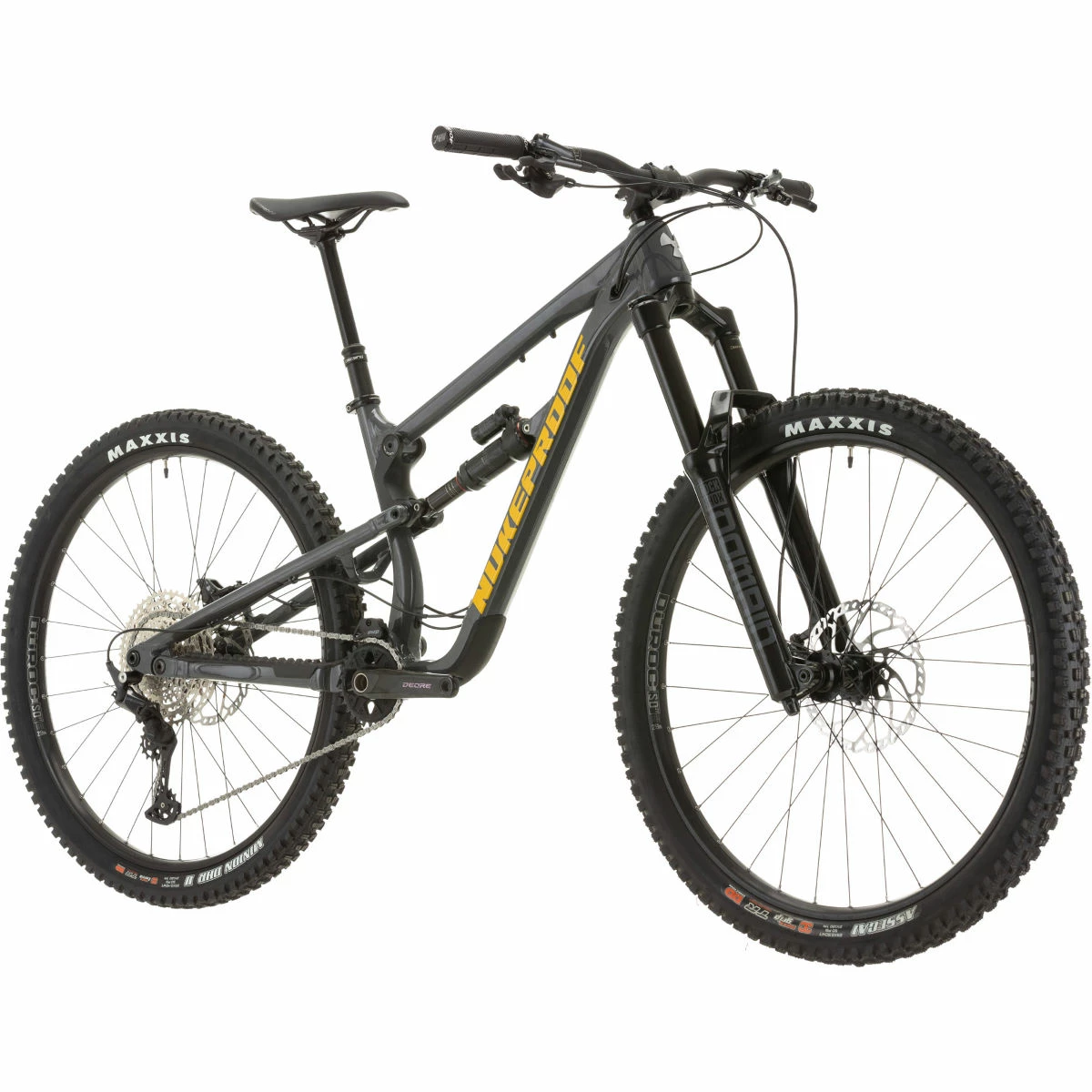

Nukeproof Mega 290 Comp Alloy Bike (Deore)

The Mega 290 Comp Alloy is equipped with 170mm RockShox Domain suspension forks and a Super Deluxe rear shock, giving you exceptional traction and terrain-smoothing suspension performance. A Shimano Deore 1×12-Speed gear transmission and powerful hydraulic disc brakes offer reliability, efficiency and power to ride trails anywhere on Earth.

Shimano Deore 12-Speed Groupset and Hydraulic Disc Brakes

This fun and versatile full-suspension enduro bike is equipped with a Shimano Deore 1×12-Speed groupset, giving you a wide gear range for climbing steep hills while powerful hydraulic disc brakes help control your momentum when descending. It also rolls upon stable and dependable Sun-Ringle Duroc SD37 wheels wrapped in fast-rolling, Tubeless Ready Wide Trail Maxxis Assegai and Minion DHR tyres. And it is fitted with a Brand X Ascend internally routed dropper seatpost.

The MegaV4: Born Through Evolution, Not Revolution.

For over 10 years, Nukeproof’s best-selling model, the Mega has been racking up awards on Enduro stages and in the press around the world. With 4 Enduro World Series titles to its name, the Mega has become an icon that is synonymous with racing. However, they never rest on their laurels with the introduction of the 4th generation Mega – Now available in an all-new mixed wheel size platform.

World Class Enduro Race Bike

Since 2009 the Nukeproof Mega has been the constant path of development to meet the evolving demands of our riders and customers alike. The Nukeproof team are relentlessly striving for improvements and with each generation, the Mega has been chiselled and shaped into today’s thoroughbred Enduro race bike. With the launch of the Mega 290 Comp, you could forgive their designers for resting on their laurels. However, as Nukeproof products are developed between the tapes, there is a constant desire to hone and refine to give Nukeproof’s athletes and riders the best possible chance of standing on top of the podium.

The Mega V4 is now available for 27.5”, 29” or new Mixed (Front 29”/Rear 27.5” wheel sizes) wheel setups, with each frame design tailored around each wheel size. The new mixed platform uses a 29” wheel up front to maximise grip and rolling efficiency whilst the 27.5” wheel out back, ensures nimble handling for manoeuvrability.

Designed as an evolution of the ultimate Enduro bike, the Mega V4 has been fully reimagined to offer optimised sizing/fit, improved Geometry and suspension kinematics on a brand-new custom triple-butted hydro-formed alloy frame. Most importantly you can now fit a water bottle inside the main front triangle.

Long-Travel Full Suspension Alloy Frame

The Alloy Mega features a full custom triple-butted hydro-formed 6061-T6 Aluminium tube set and forged parts. It is available for 27.5”, 297 or 29” wheel sizes. These are totally different, compromise-free frames that were designed and developed at the same time. Each frame is simply tailored around each wheel size so that you can get the most out of every ride.

Updated Sizing and Geometry

Whilst humans may not have changed size much in recent years; the bikes they choose to ride most certainly have. To ensure a perfectly dialled fit Nukeproof now offer 297 bikes in S, M, or L sizes and 290 bikes in M, L, XL or XXL.

Lower, longer, steeper and slacker. The Mega geometry is designed around the saddle offset for each size to optimise seated weight distribution. This results in steeper seat angles across the board but especially on larger sizes for taller riders. This in turn results in longer reach figures to ensure a comfortable cockpit on each size. To further aid the perfect fit Nukeproof have also used shorter seat tubes which are designed to maximise seat post insertion depths. Finally, all Mega bikes are now designed to use short offset forks to further improve both climbing and descending capabilities.

Progressive and Supportive Suspension Platform

To step-change the Mega’s suspension design Nukeproof went back to the drawing board and started afresh. They have redesigned the Mega 4 bar horst linkage to be super supple over small bumps, progressive and supportive throughout the mid-stroke for support when pedalling, cornering and pumping, with increased end stroke leverage to allow more tuning options with volume spacers. The kinematic is designed to have higher levels of anti-squat for climbing gears but this reduces as you drop down the cassette. The result is a bike that is more confidence-inspiring everywhere on the hill. It behaves itself on the climbs yet can still be thrashed through the roughest and most technical terrain on the way back down.

Features:

Frame: Nukeproof Mega V4 290 Alloy, 160mm Travel, custom triple butted hydro-formed tube set, internal cable routing, ISCG 05 mount, Enduro Bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured Rubber frame protection
Fork: RockShox Domain, Motion Control RC damper, 170mm, 44mm Offset, BOOST, Debonair, Gloss Black

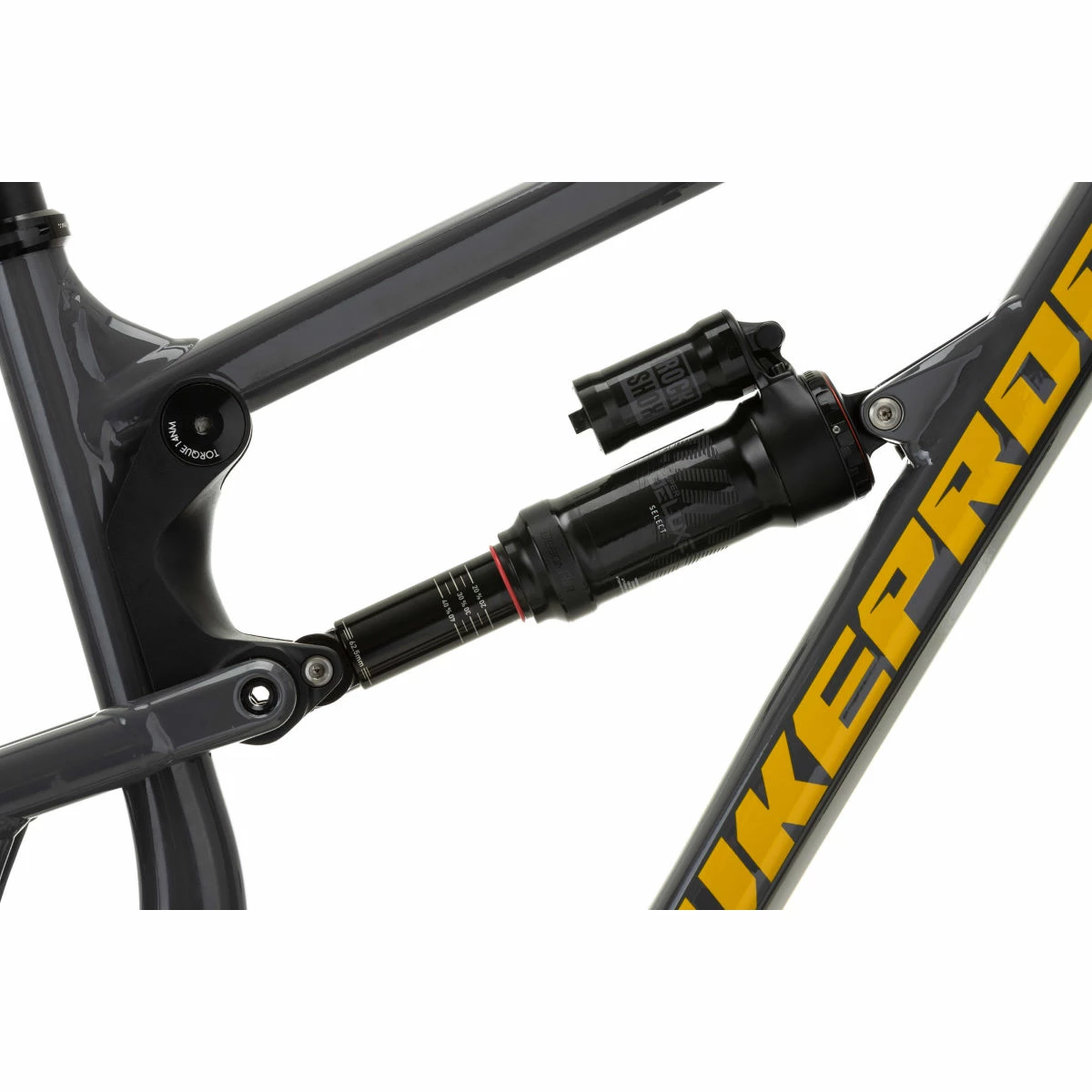

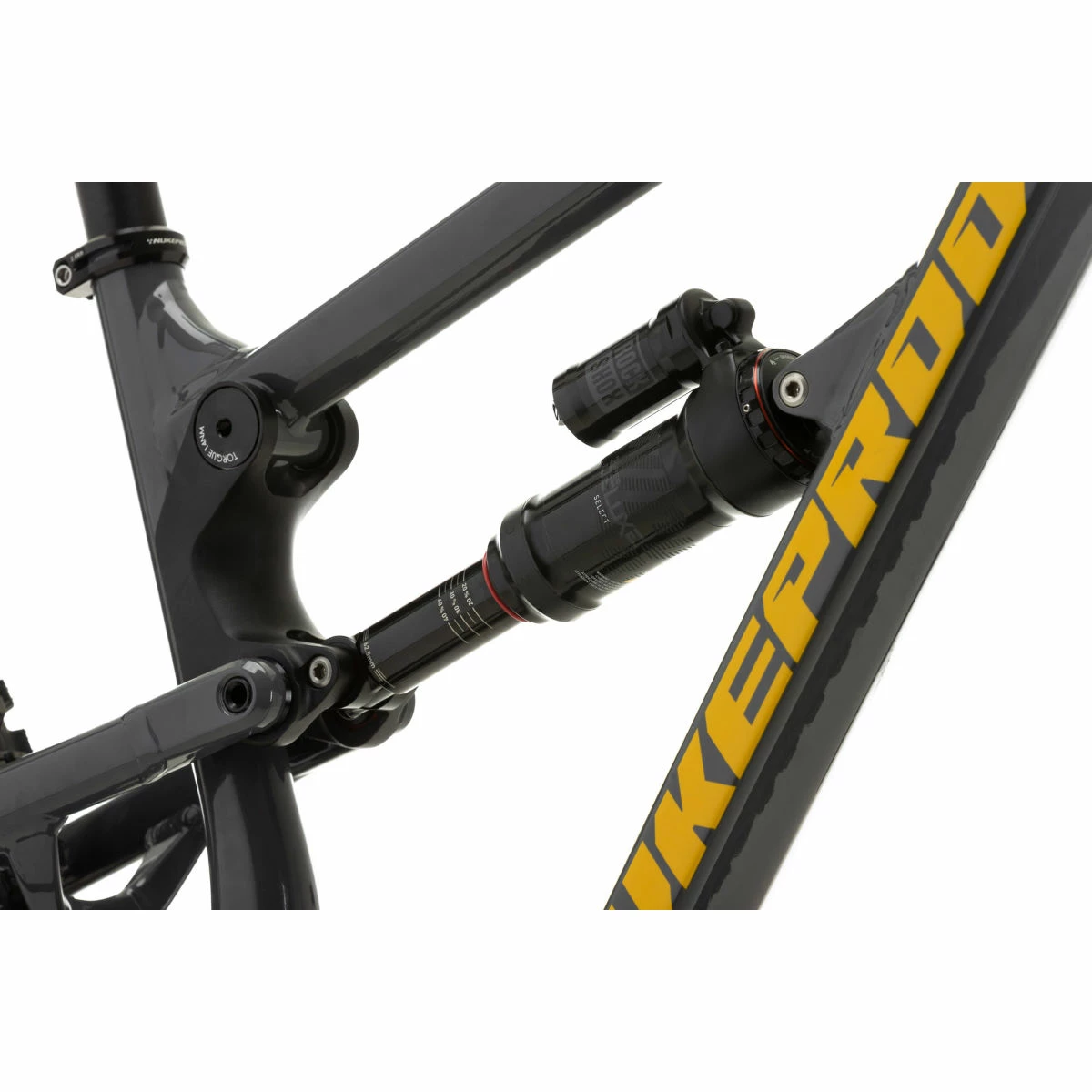

Shock: RockShox Super Deluxe Select R, Custom LIN L1 HOTDOG tune, 230×62.5mm, Bearing End, 2 bottomless tokens fitted
Front Wheel: Sun-Ringle Duroc SD37 Comp 29″, 15x110mm
Rear Wheel: Sun-Ringle Duroc SD37 Comp 29″, Shimano Microspline Driver, 148x12mm
Tyres: Front: Maxxis Assegai 29″ x 2.5 WT, 3C MaxxGrip DD TR, Rear: Maxxis Minion DHR II 29″ x 2.4 WT, 3C MaxxTerra DD TR

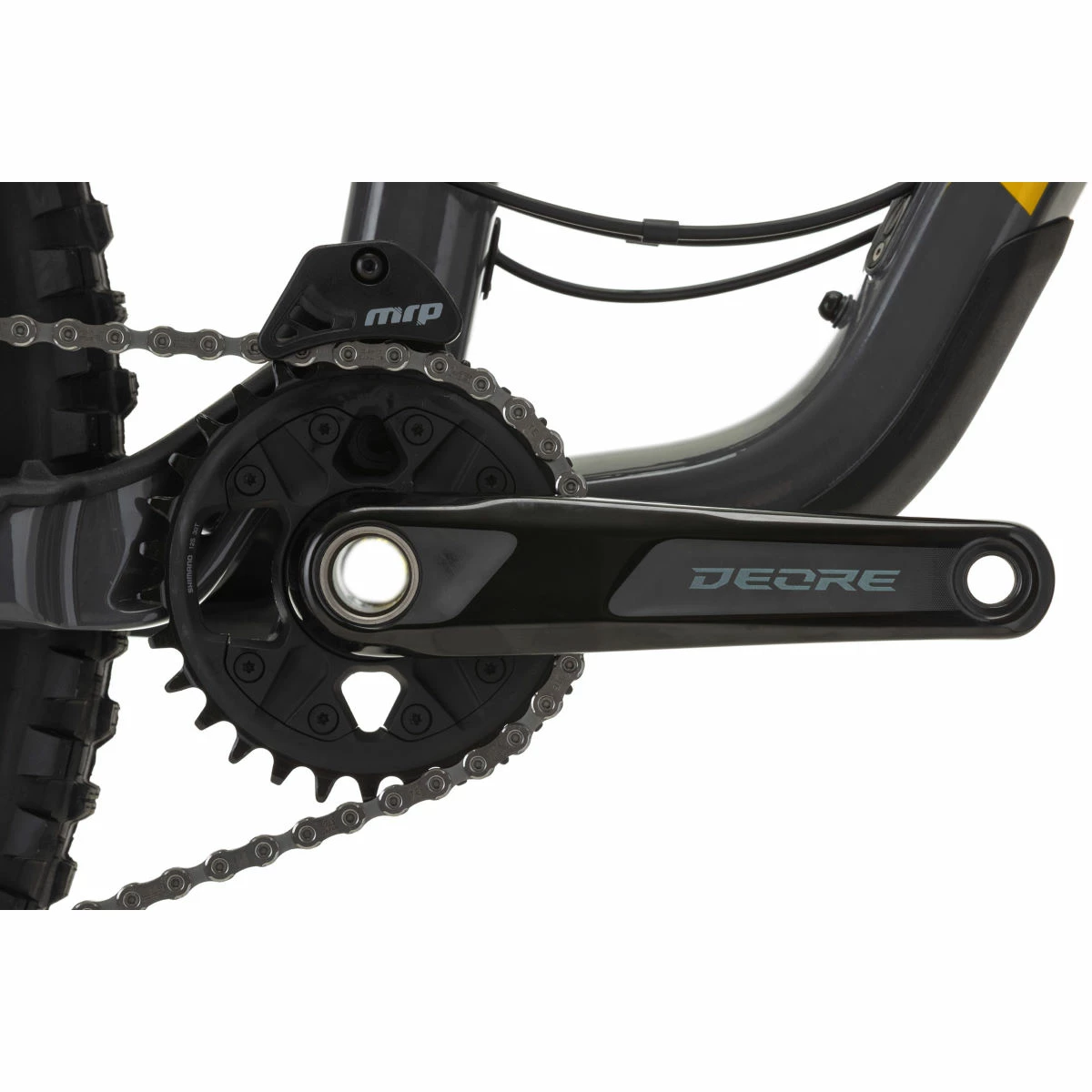

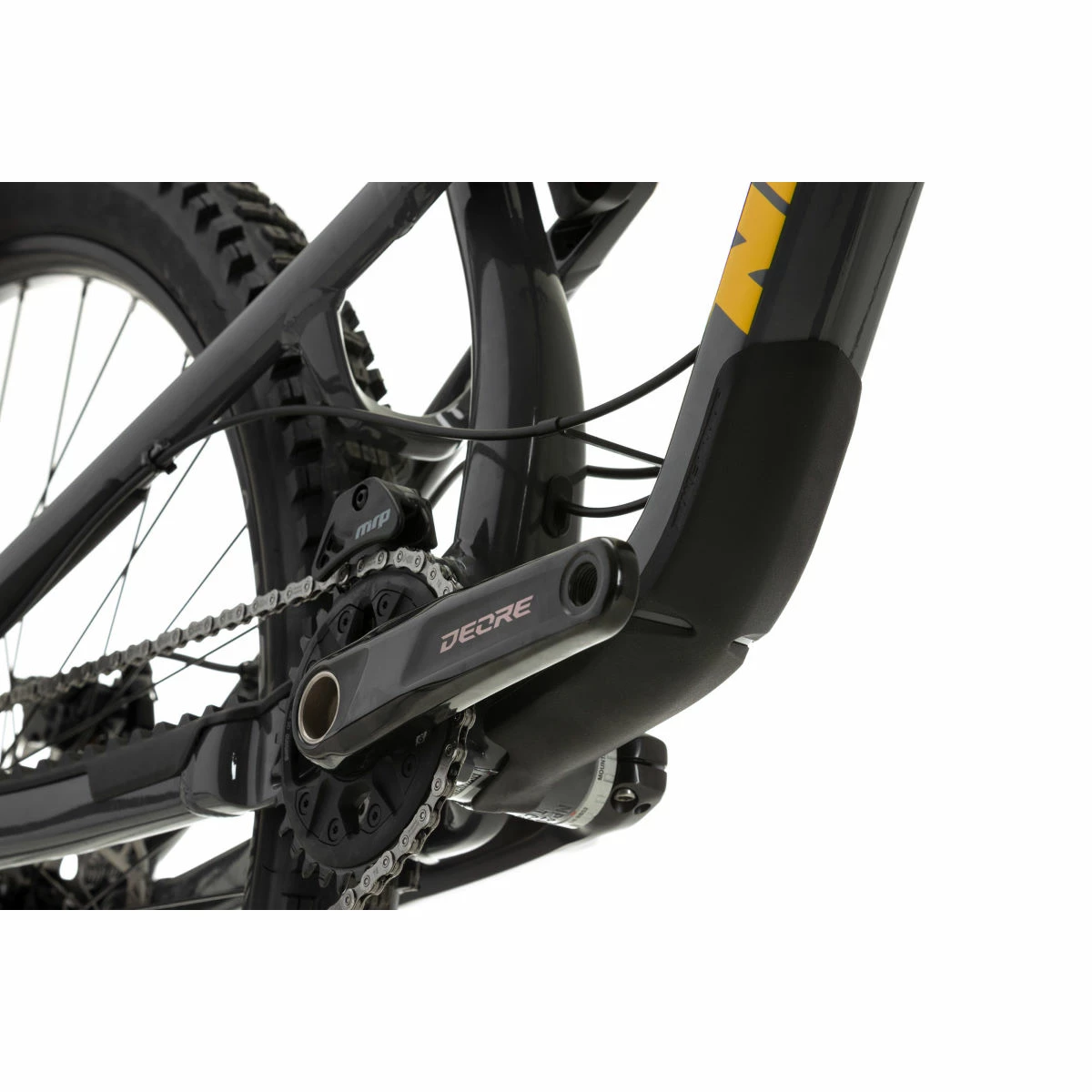

Crankset: Race Face Ride, 12 Speed Crank, 170mm, 30T, 52mm Chainline
Shifter: Shimano Deore M6100-IR, 12-speed Rapidfire Plus, I-Spec EV
Rear Derailleur: Shimano Deore M6100, SGS 12-Speed, Shadow Plus
Chain: Shimano Deore M6100 12-Speed
Cassette: Shimano Deore M6100 12-Speed (HYPERGLIDE+), 10-51T
Chain Guide: MRP 1x CS, 28-34T, ISCG-05, black

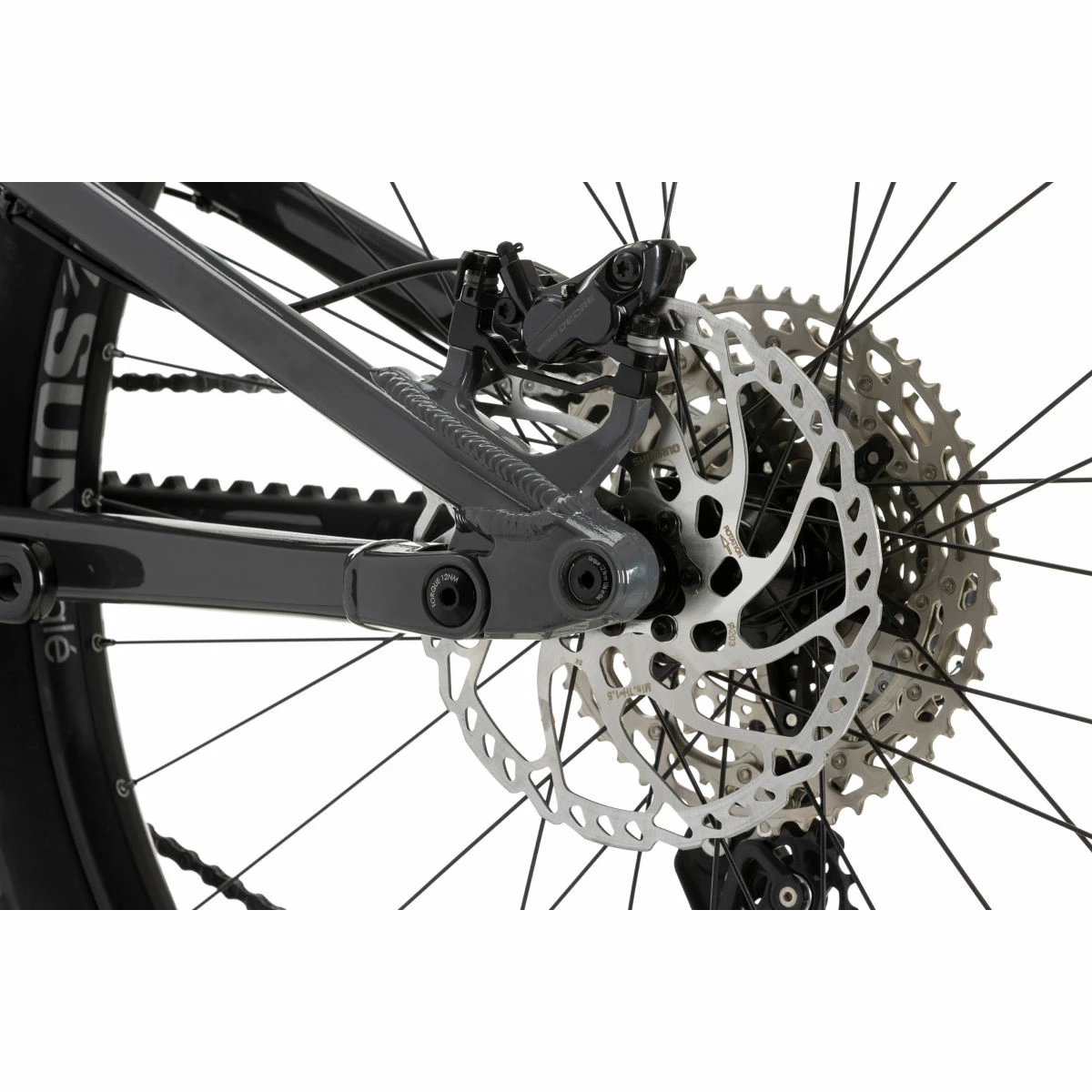

Brakes: Shimano or SRAM DB8 hydraulic disc
Front Rotor: Shimano or SRAM, 200mm
Rear Rotor: Shimano or SRAM, 200mm

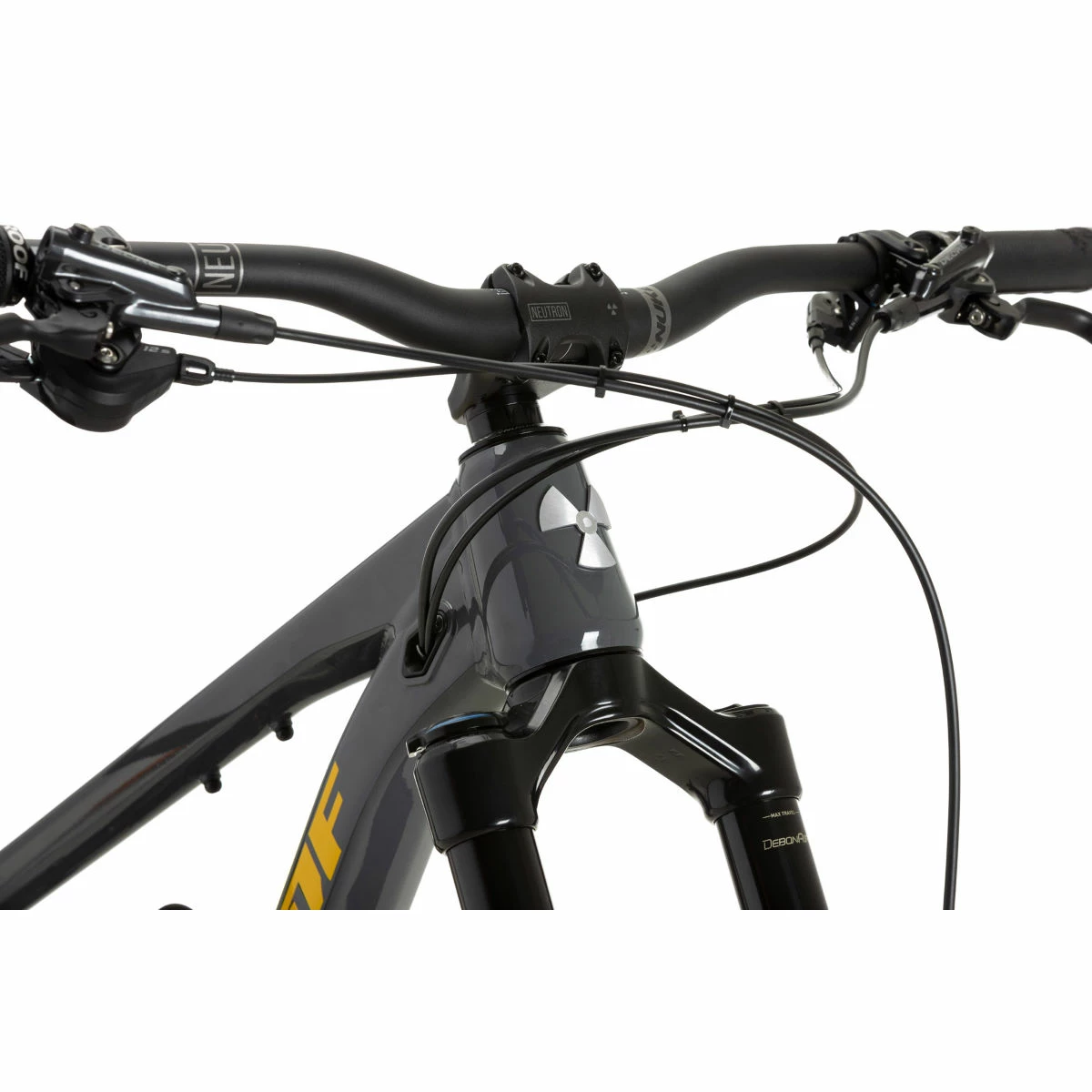

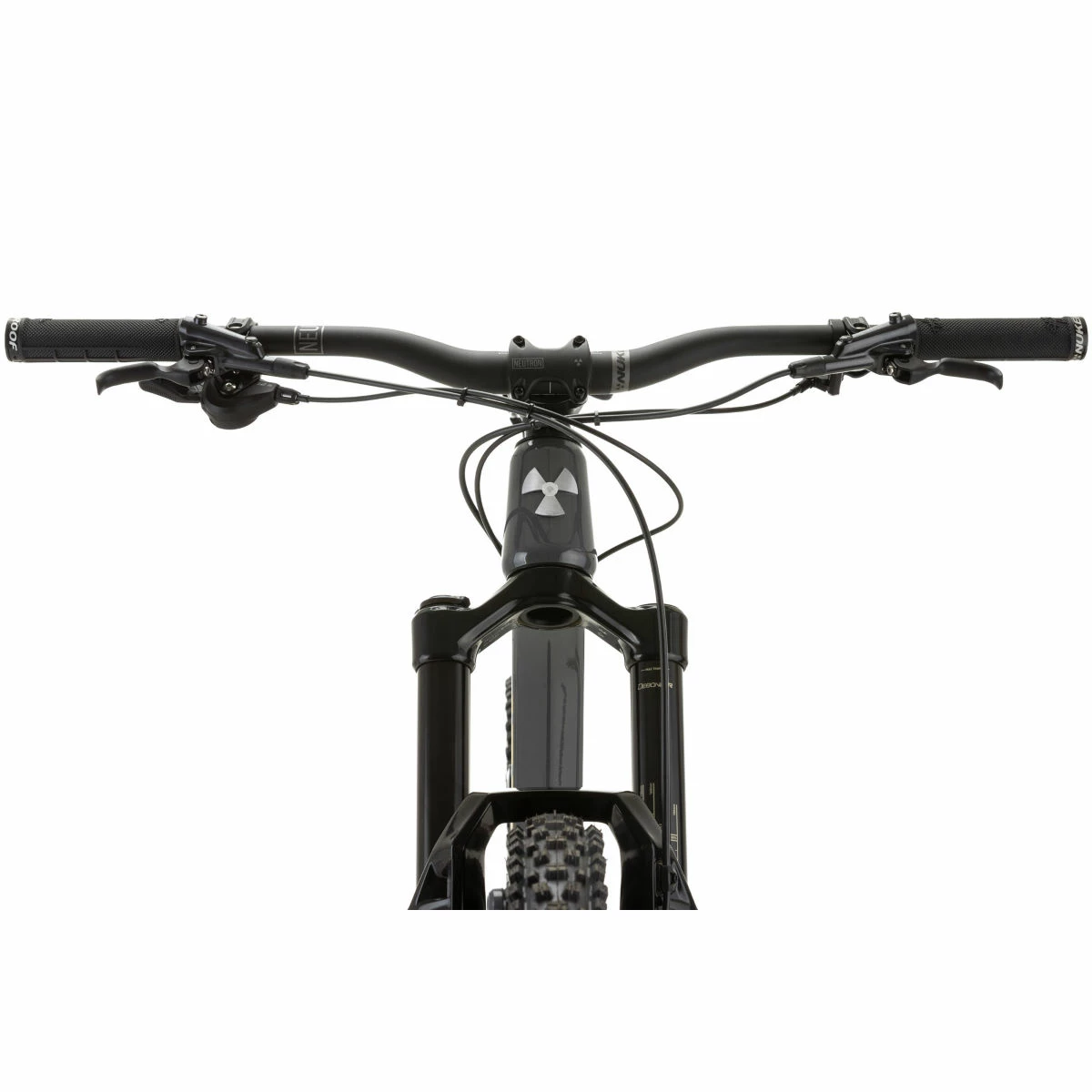

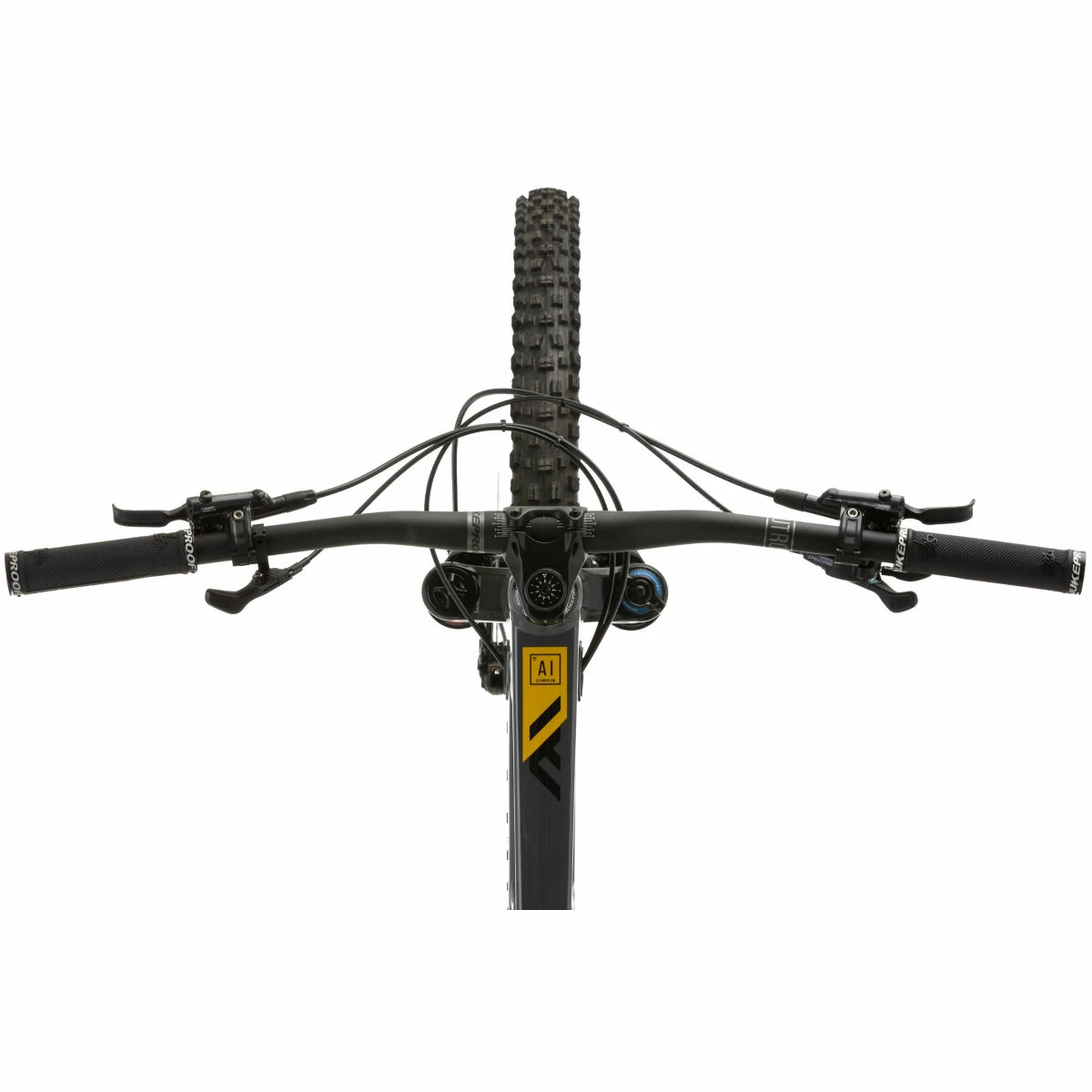

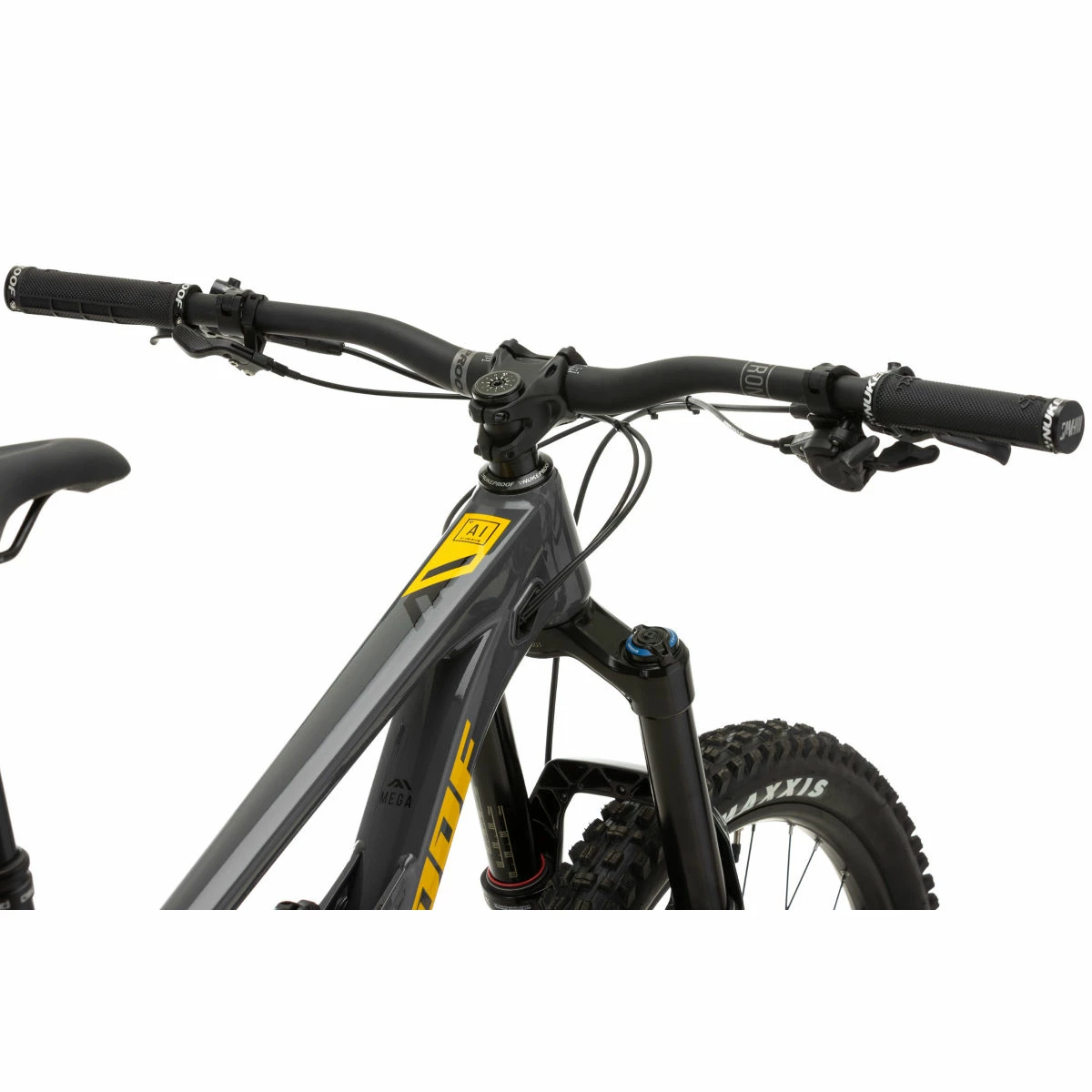

Handlebars: Nukeproof Neutron V2 25mm Rise, Width – M780mm, L800mm, XL800mm, XXL800mm
Stem: Nukeproof Neutron AM, 45mm, Black
Saddle: Nukeproof, Black

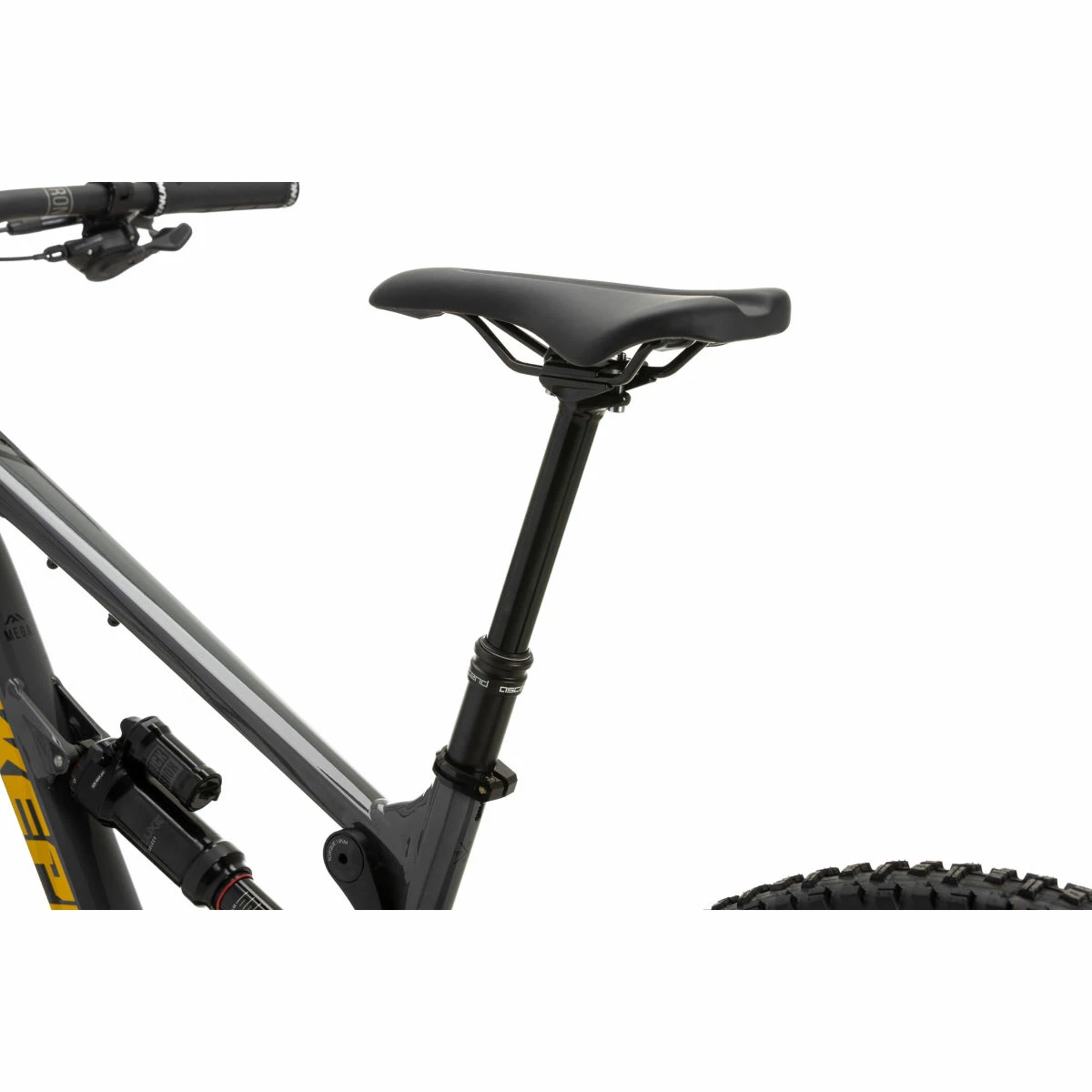

Seatpost: Brand X Ascend internal, 31.6mm, M:150mm drop; L:170mm drop; XL/XXL:200mm drop
Headset: Nukeproof, 44-56 IITS
Grips: Nukeproof Sam Hill Signature
Weight: 16.55kg Medium Tubeless

Key Information:

Material: Hydroformed 6061-T6 Triple-Butted Aluminium
Fork Travel: 170mm
Axle to Crown: 596mm
Fork Offset: 44mm
Rear Travel: 160mm
Wheels Size: 29″
Max Tyre Size: 2.6″
Recommended Shock Sag (Measured seated): 30%
Shock Size: 230×62.5mm
Shock Hardware F: 25x8mm
Shock Hardware R: 30x8mm
Headtube: 44-56mm Tapered Semi-Integrated
Headset: ZS44-28.6 – T2 / ZS56/40 – B8
Bearings Required: 4x F6802 LLU MAX, 4x 6902 LLU MAX, 2x F6902 LLU MAX-EA
Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
Seat Clamp: 34.9mm
BB: Threaded 73mm BSA
Rear Hub: Boost 148x12mm
Rear Axle: SRAM UDH Maxle Stealth M12x1.0 180mm (Thread Length 13mm)
Chain Guide: ISCG05
Brake Mount: 180mm Direct Post

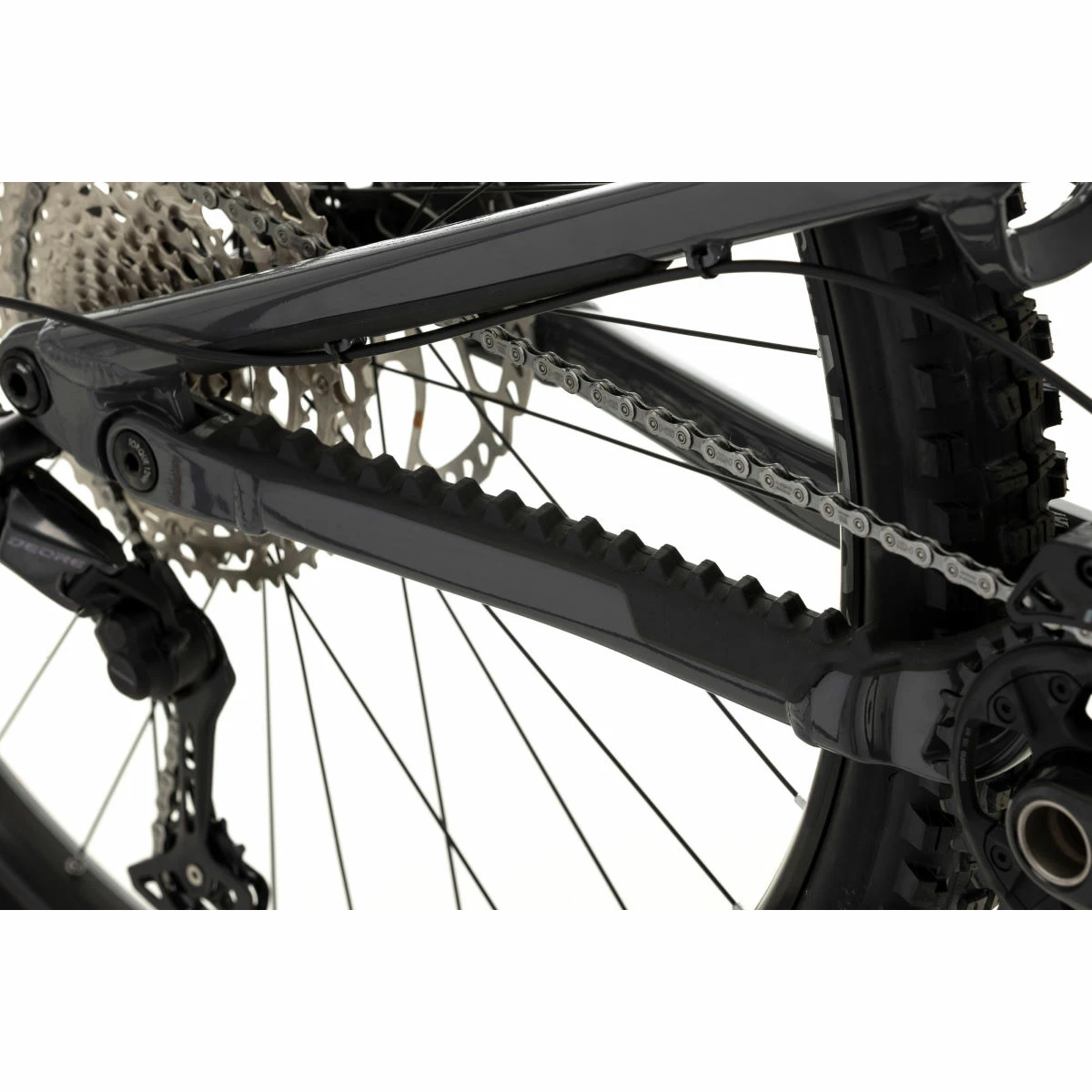

Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS

Built, Tuned and Ready to Ride

Rest assured that each bike is fully built and tuned by Wiggle’s team of qualified bike mechanics to ensure your bike arrives in perfect condition. We supply all bikes with a set of plastic pedals, a pedal wrench and a multi-tool kit. Find out which size fits you by clicking the size chart tab.

Please Note: Due to ongoing issues in the global bike supply chain, manufacturers may substitute certain component items due to availability. In this situation, they will be replaced with the same quality or better performing parts.

Note: Manufacturer may reserve the right to change the specification of that listed or shown on this page.
