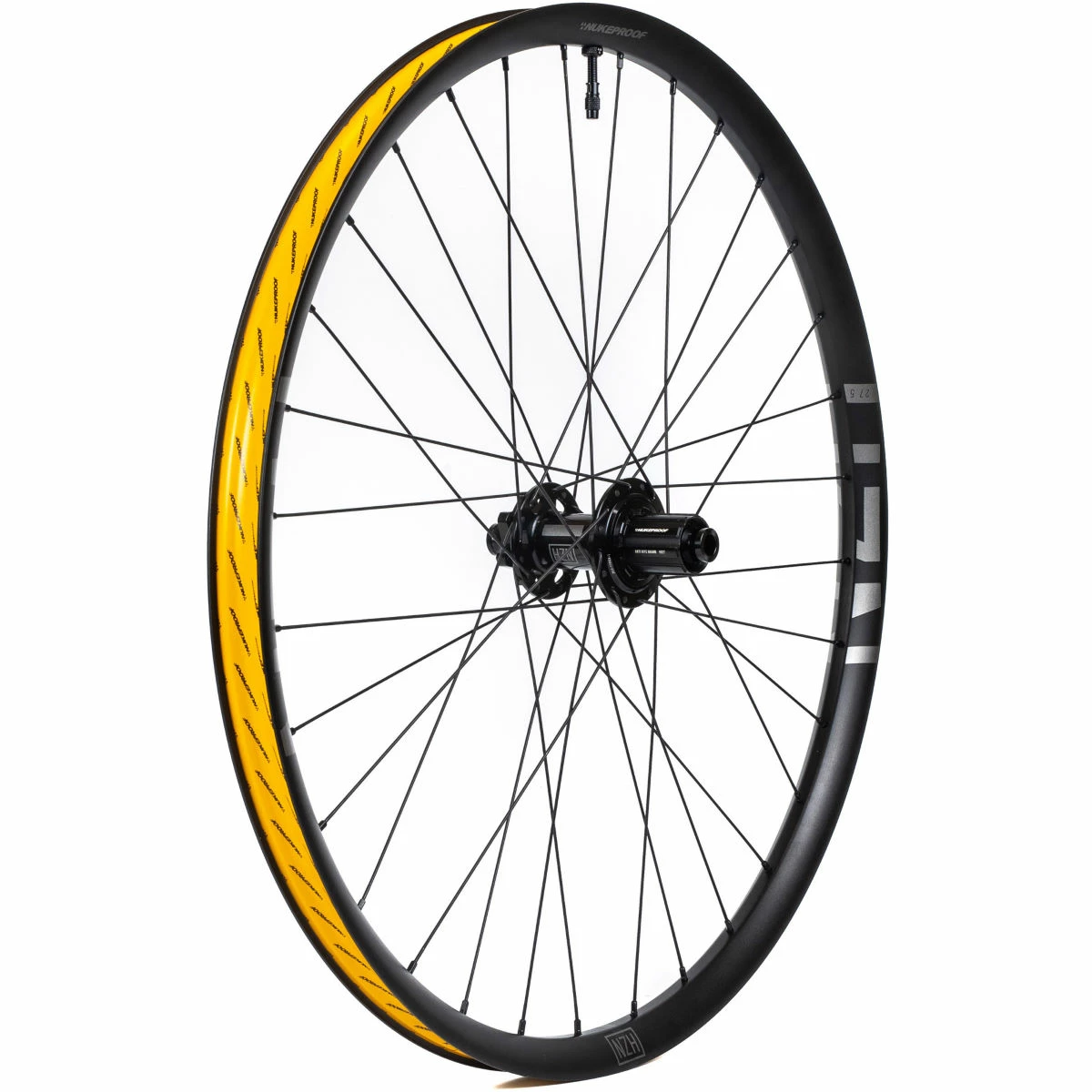

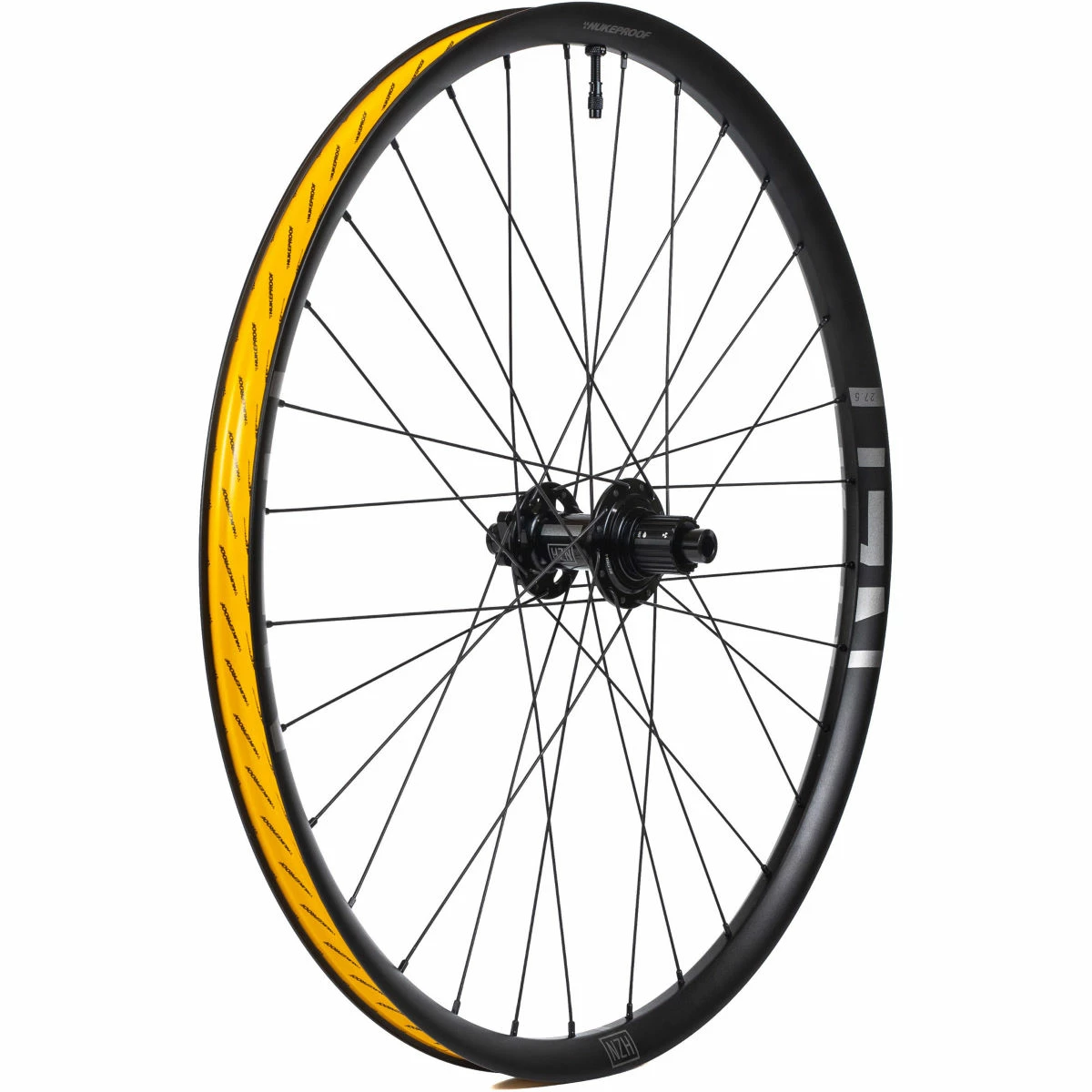

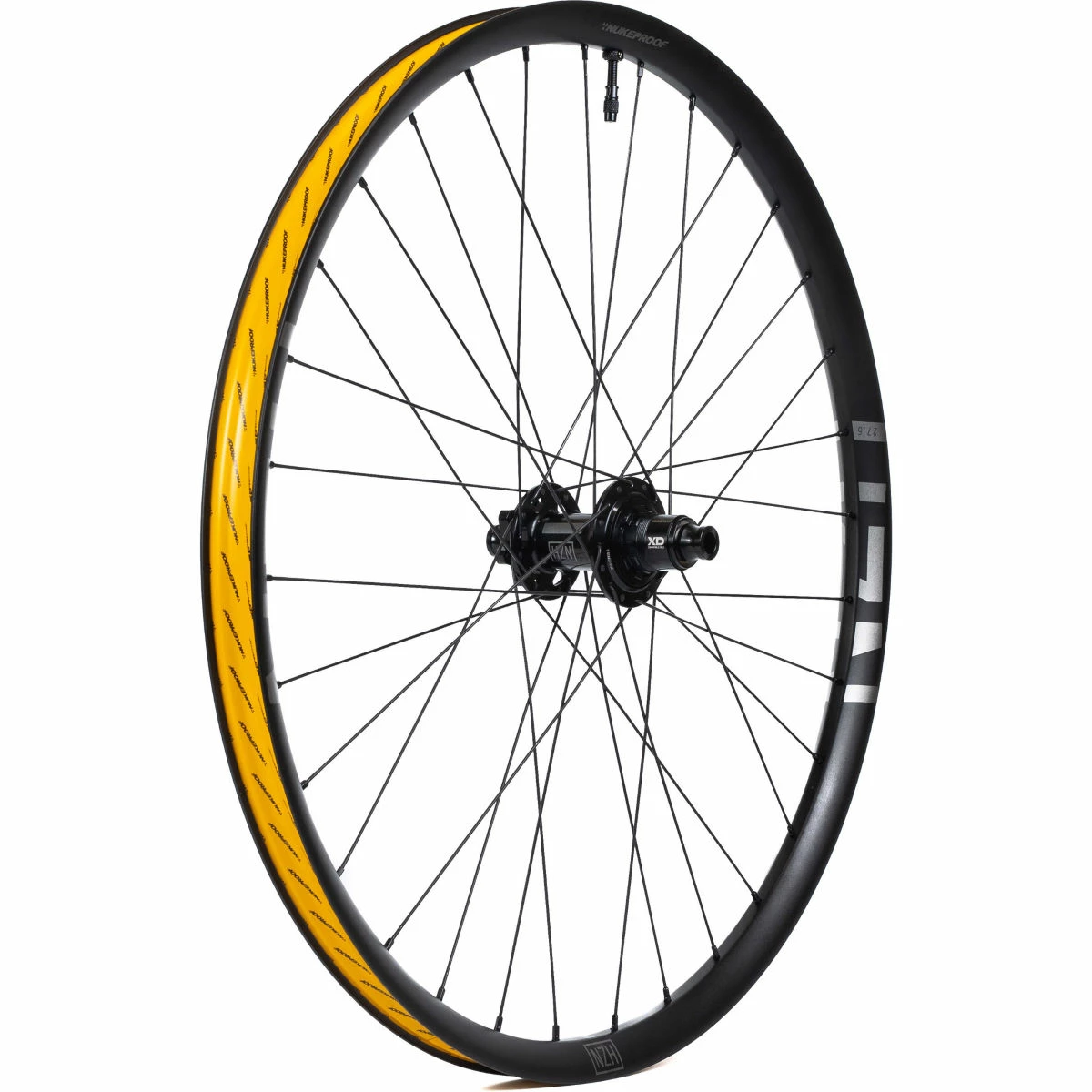

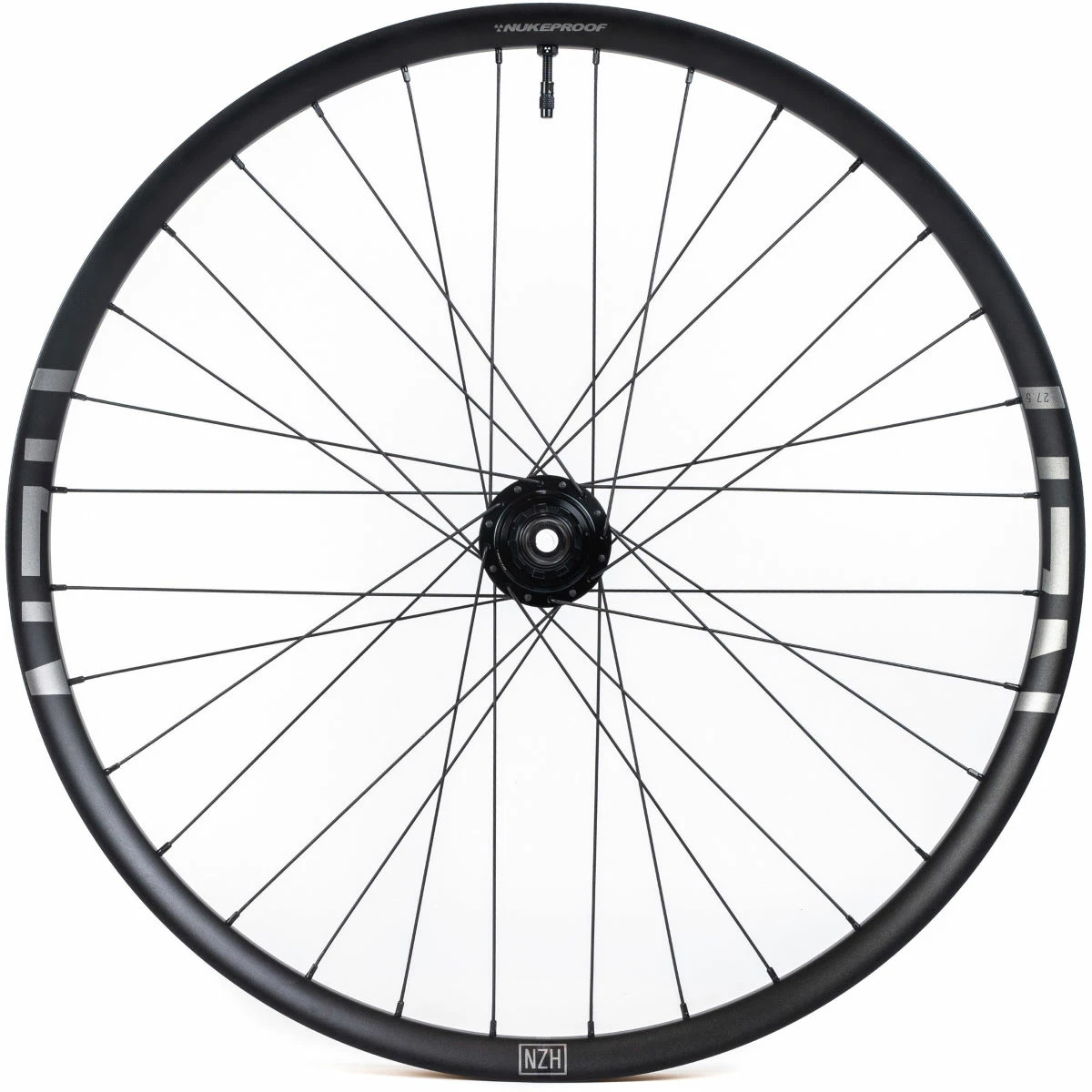

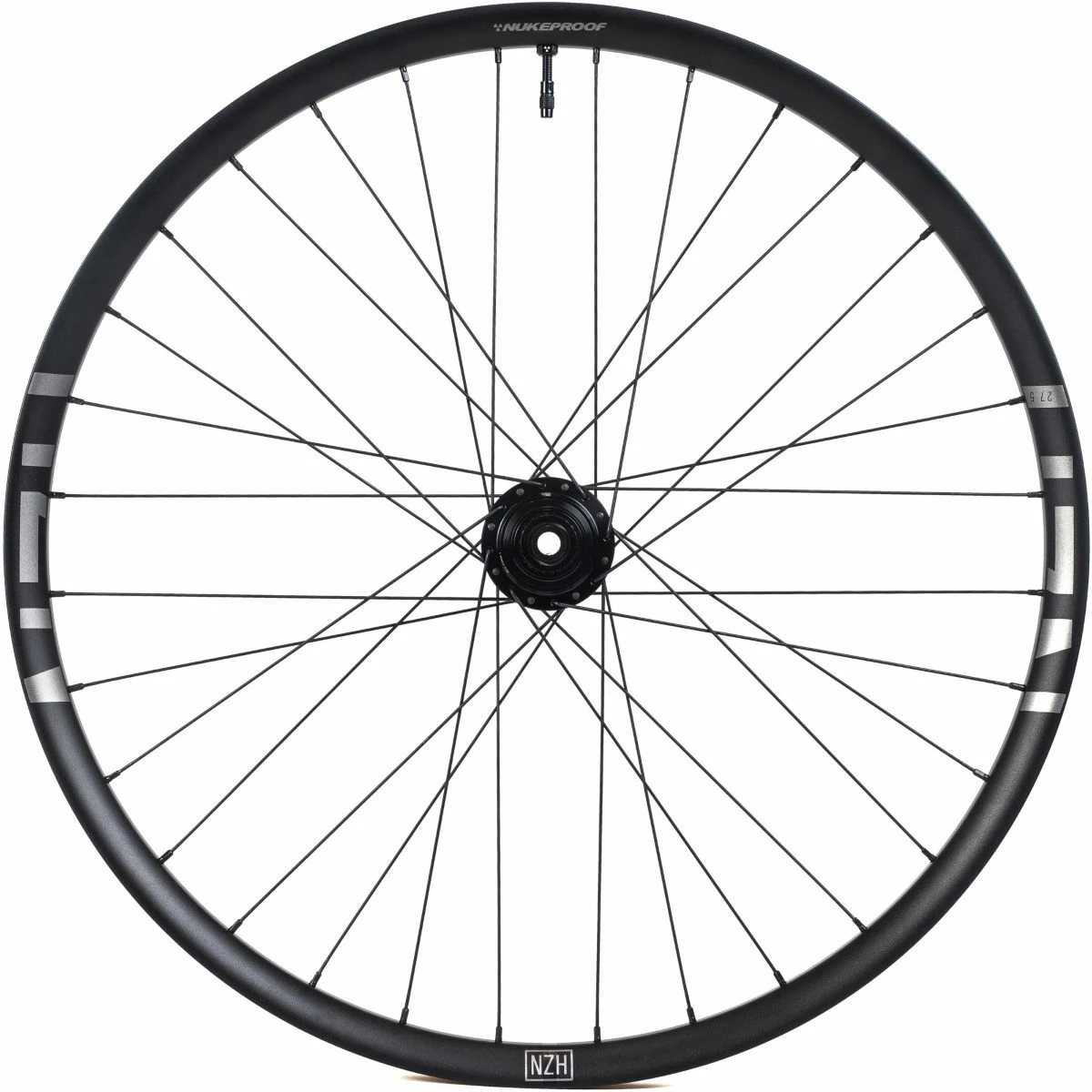

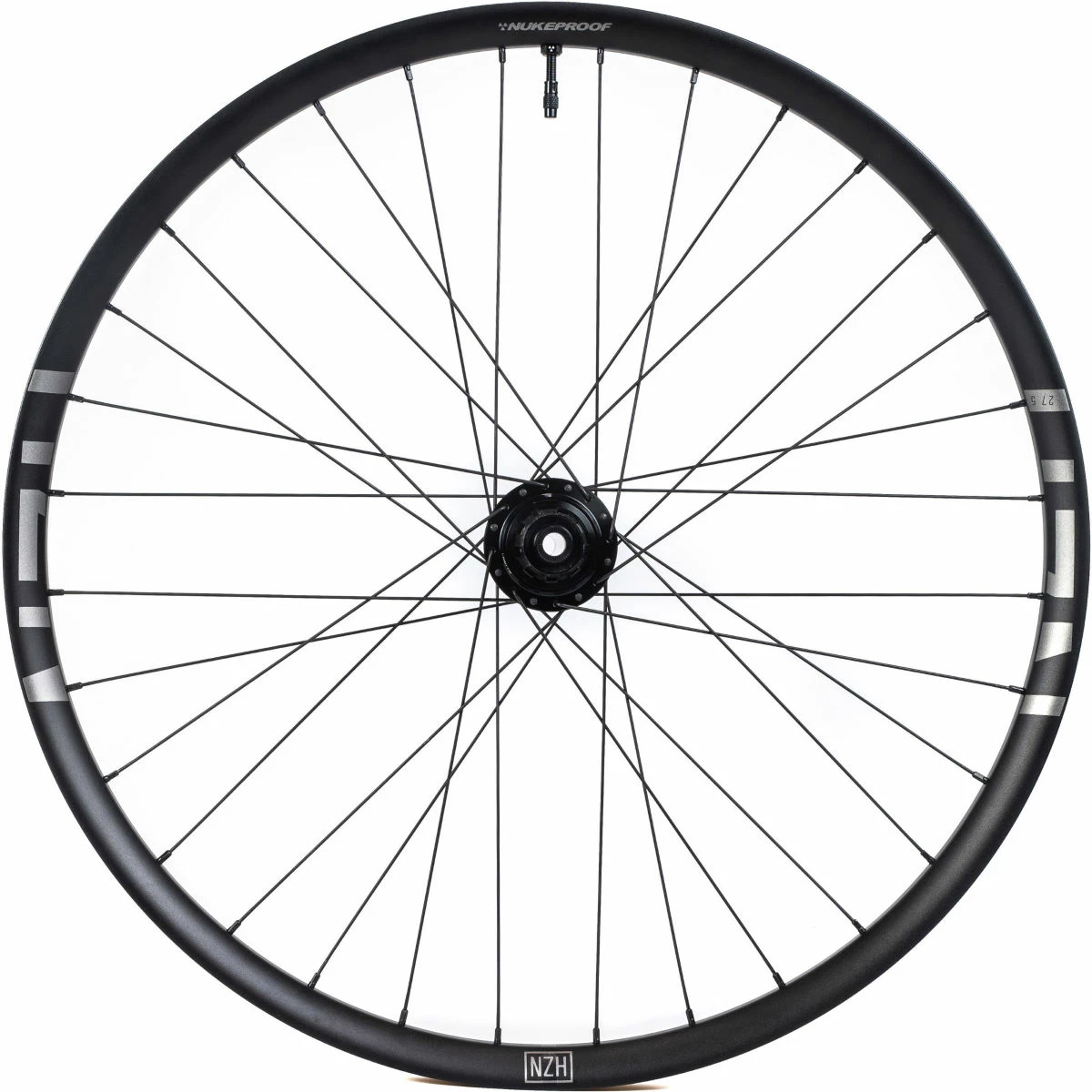

Nukeproof Horizon V2 Rear Wheel 102t

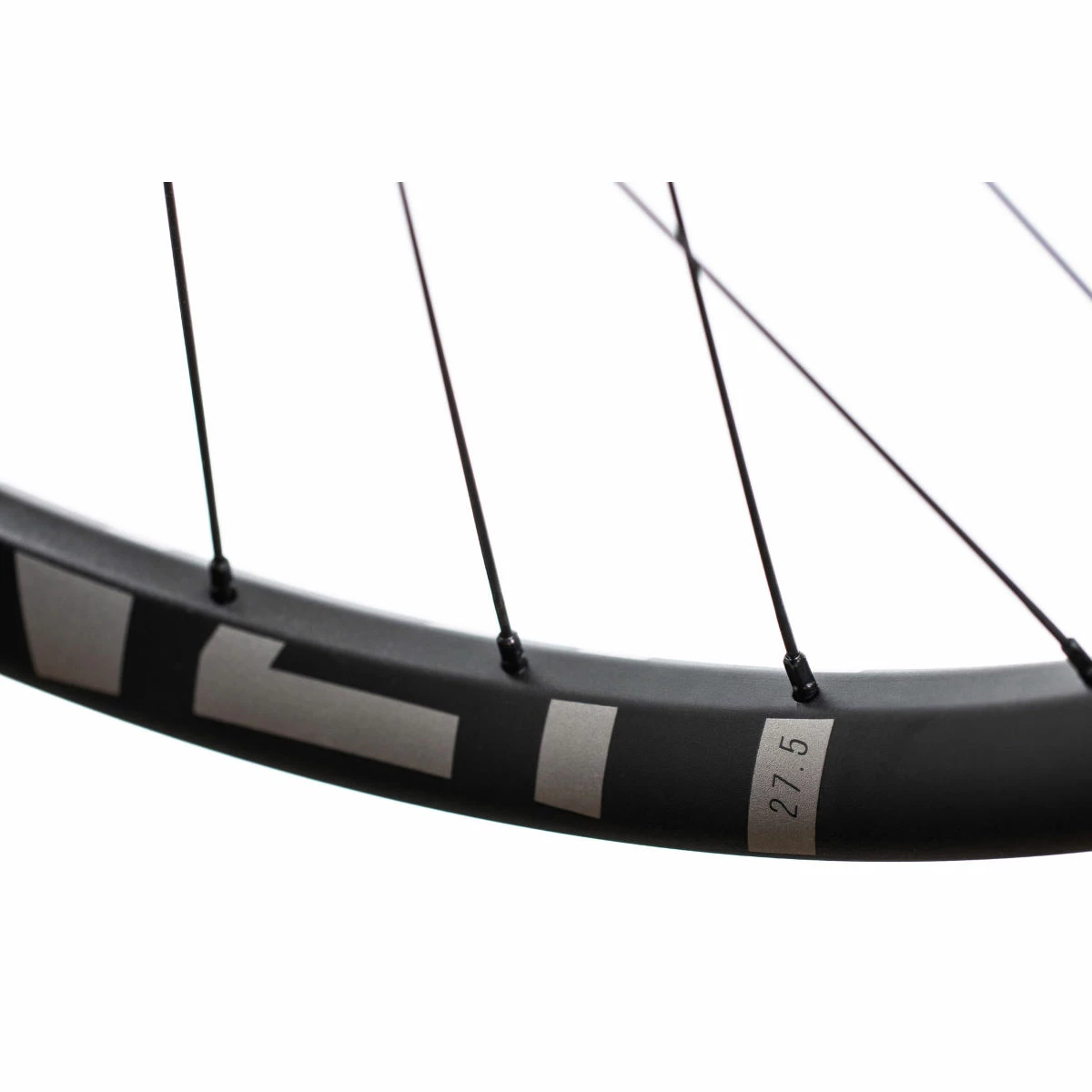

Ready for fast-paced and aggressive trail-riding, this rear wheel has gone through extensive testing to meet the demands of both Enduro and DH riders. It features a special blend of alloy material, which produces a hardness similar to 7-series alloy, but with the ductility and yield properties of a 6-series. This gives you the best of both worlds in terms of stiffness, strength and weight. Nukeproof has also ensured this rear wheel’s rim profile is the same as the front (sold separately), the only difference is the rear has a thicker sidewall for added strength on the trails. One final highlight is it comes equipped with J-bend spokes, which means that tensioning and spoke replacement is as simple as possible.

Enduro ABEC 5 Bearings

After extensive testing with various brands of bearings, Nukeproof chose to use Enduro ABEC 5 bearings in this rear wheel. These bearings have the “LLU/LLB” seal type, which uses two lips that make light contact in a groove to create a labyrinth where the water or dirt has a more difficult time to penetrate. LLU seals are similar, only the contact pressure or interference fit is greater to seal better. Enduro bearings have 80% grease fill on both sides whereas most other bearings have 35% grease fill on one side. This delivers full coverage, so there are no dry areas as well as avoiding metal on metal contact or wear. This means that the axle feels tight out of the box and after a couple of rides it will become free.

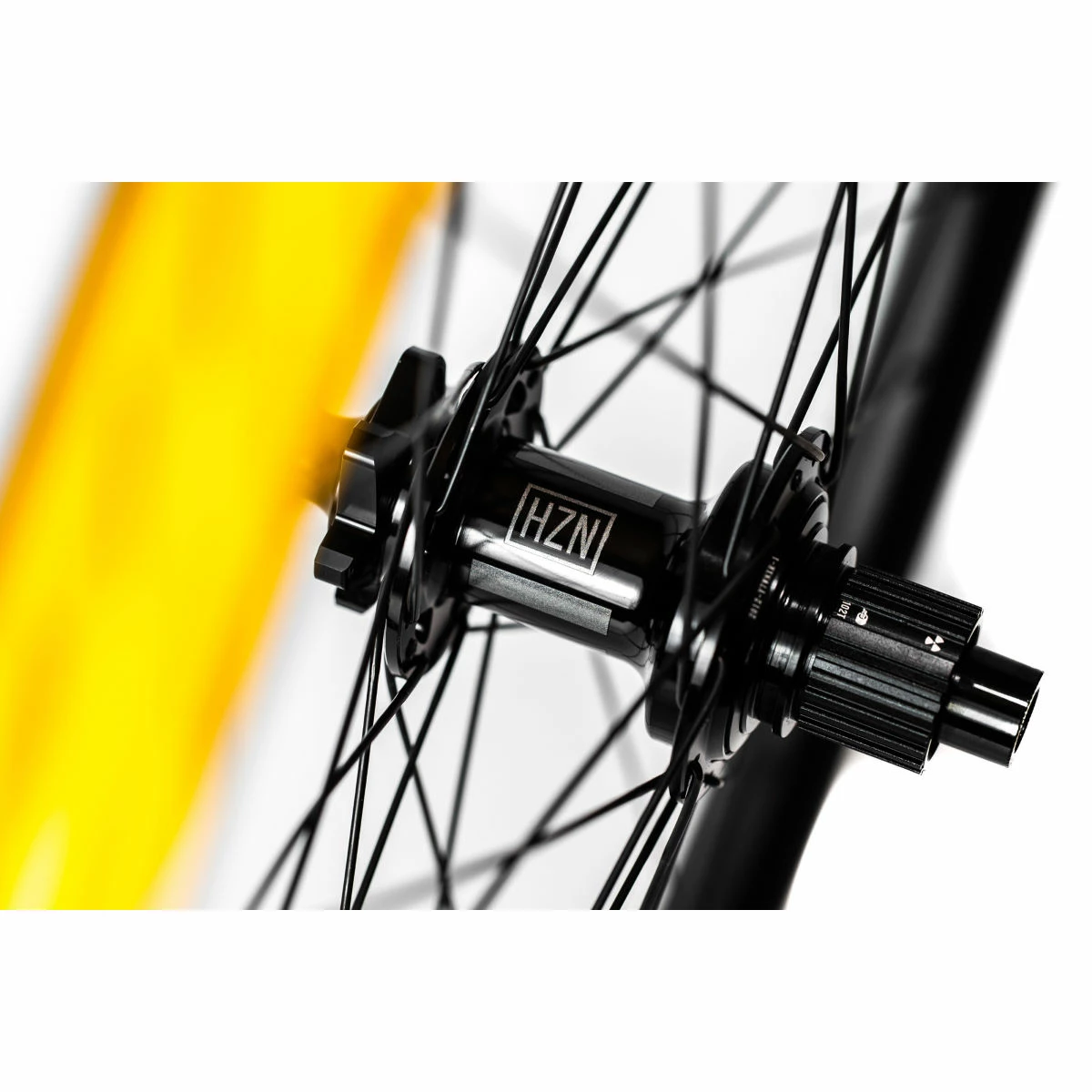

Nukeproof Horizon V2 Hub

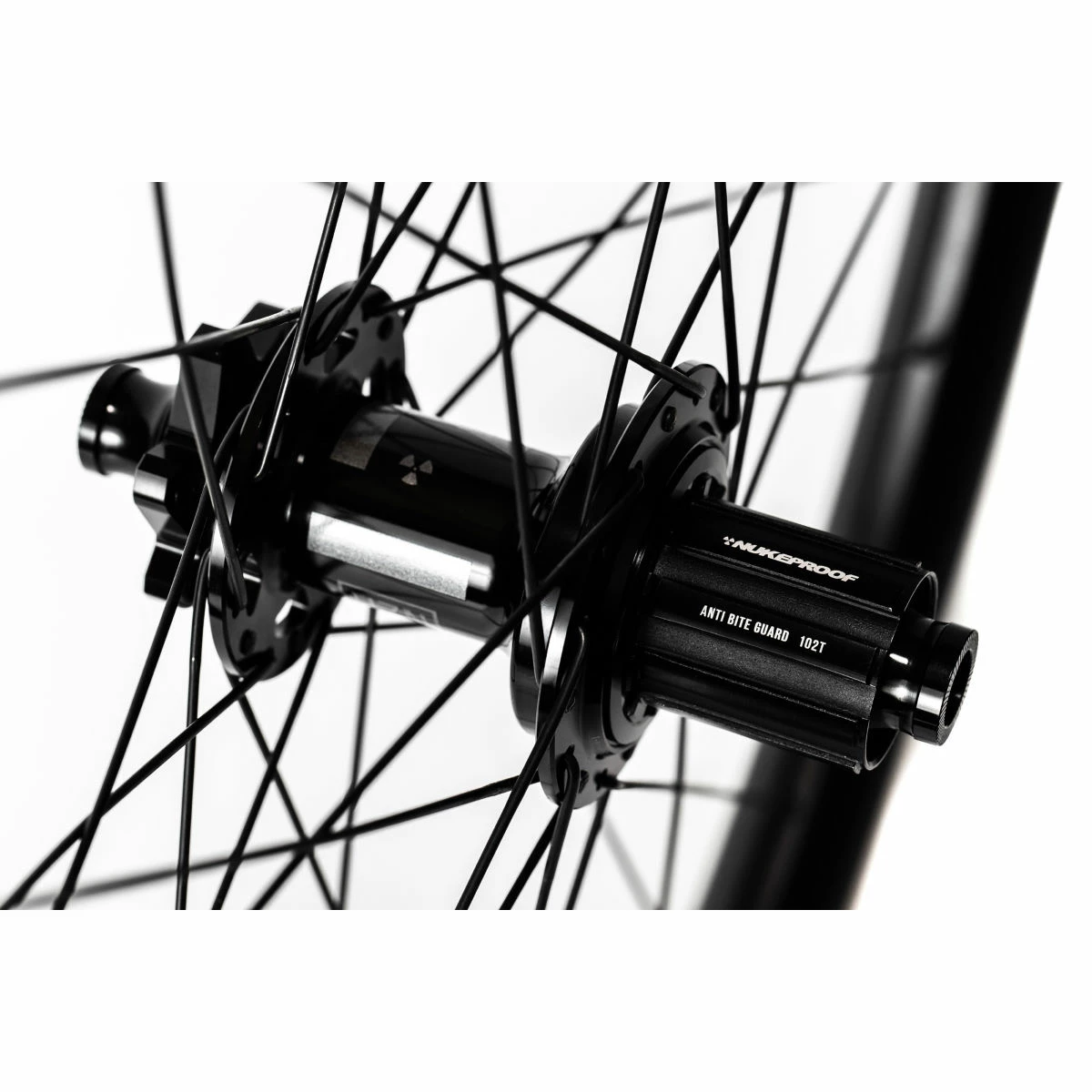

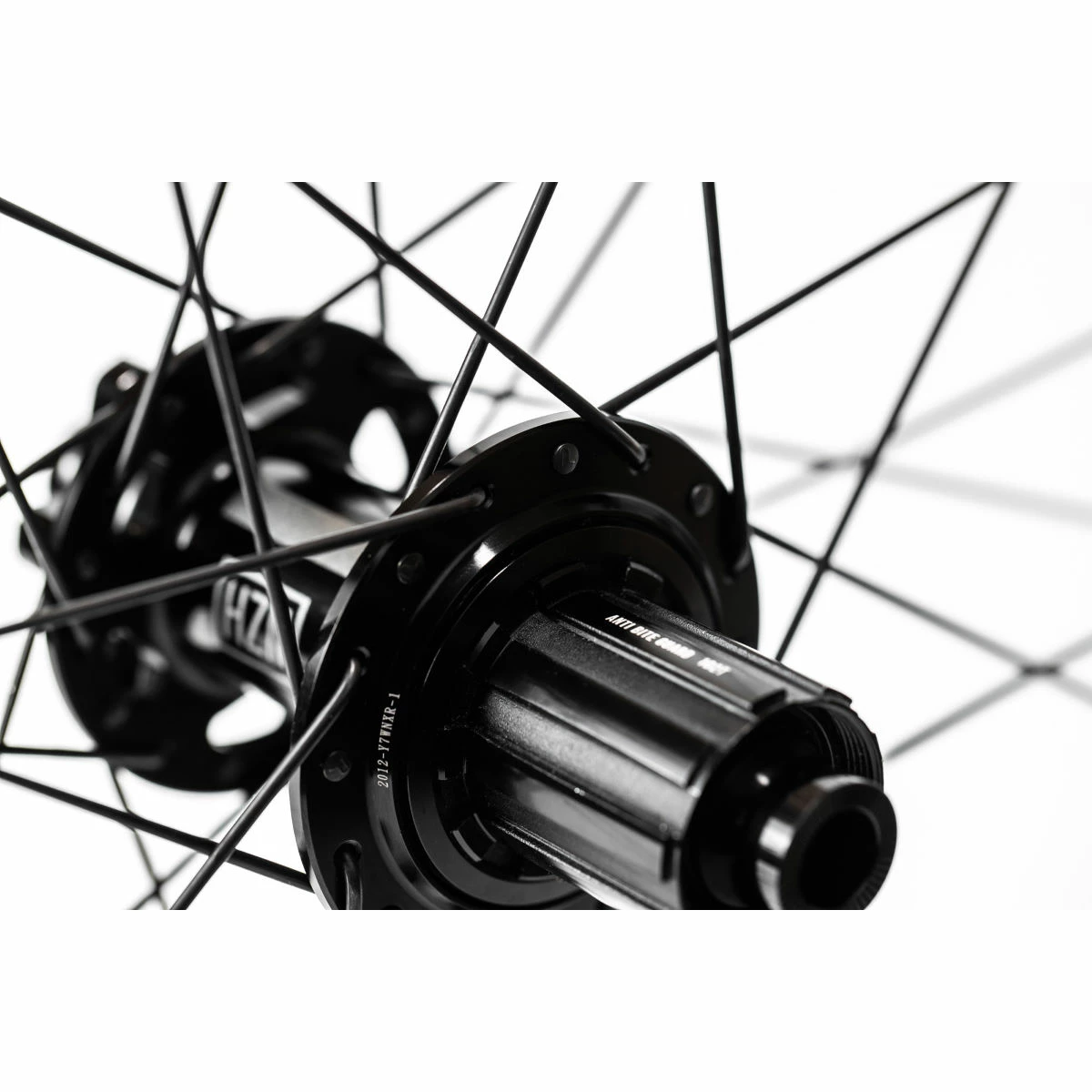

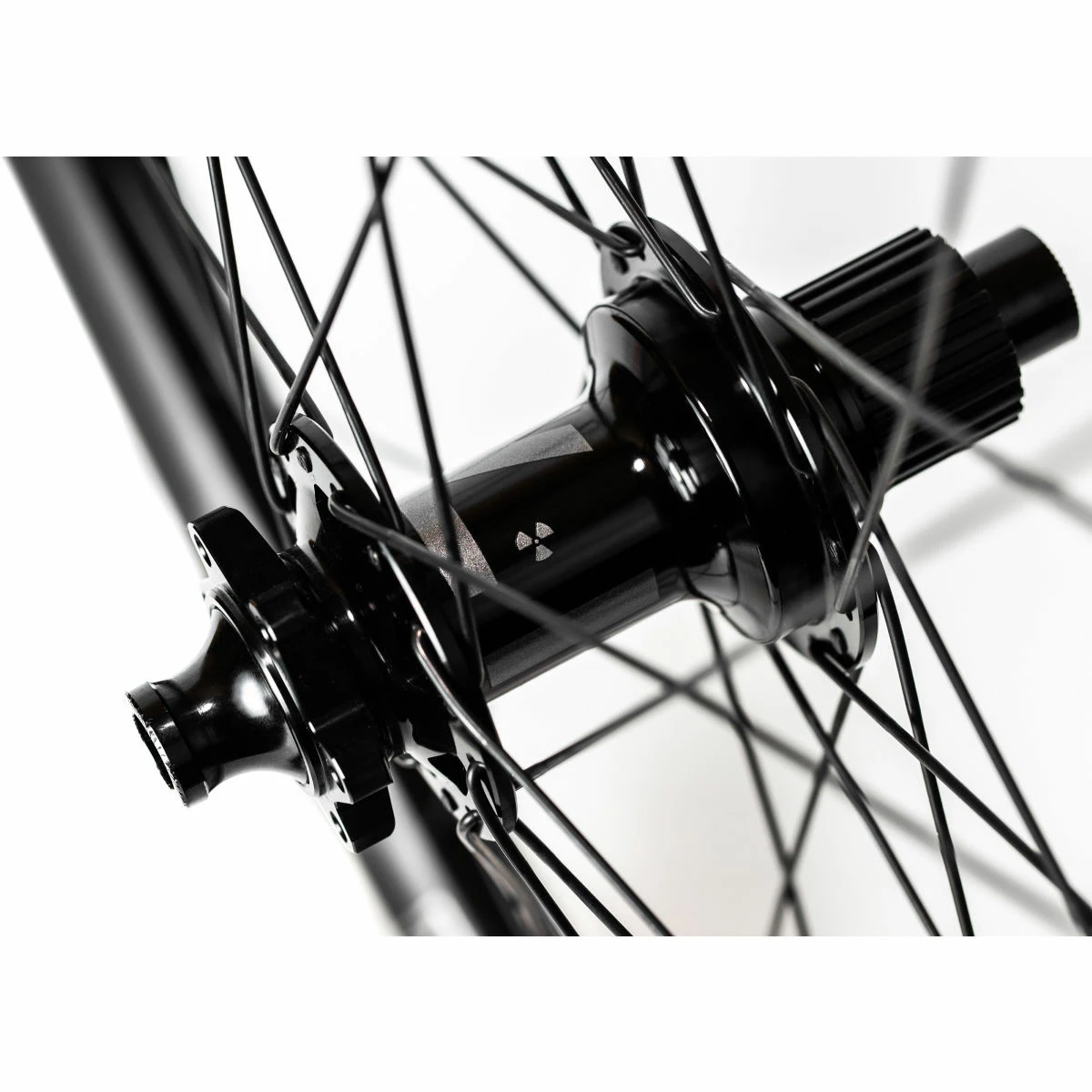

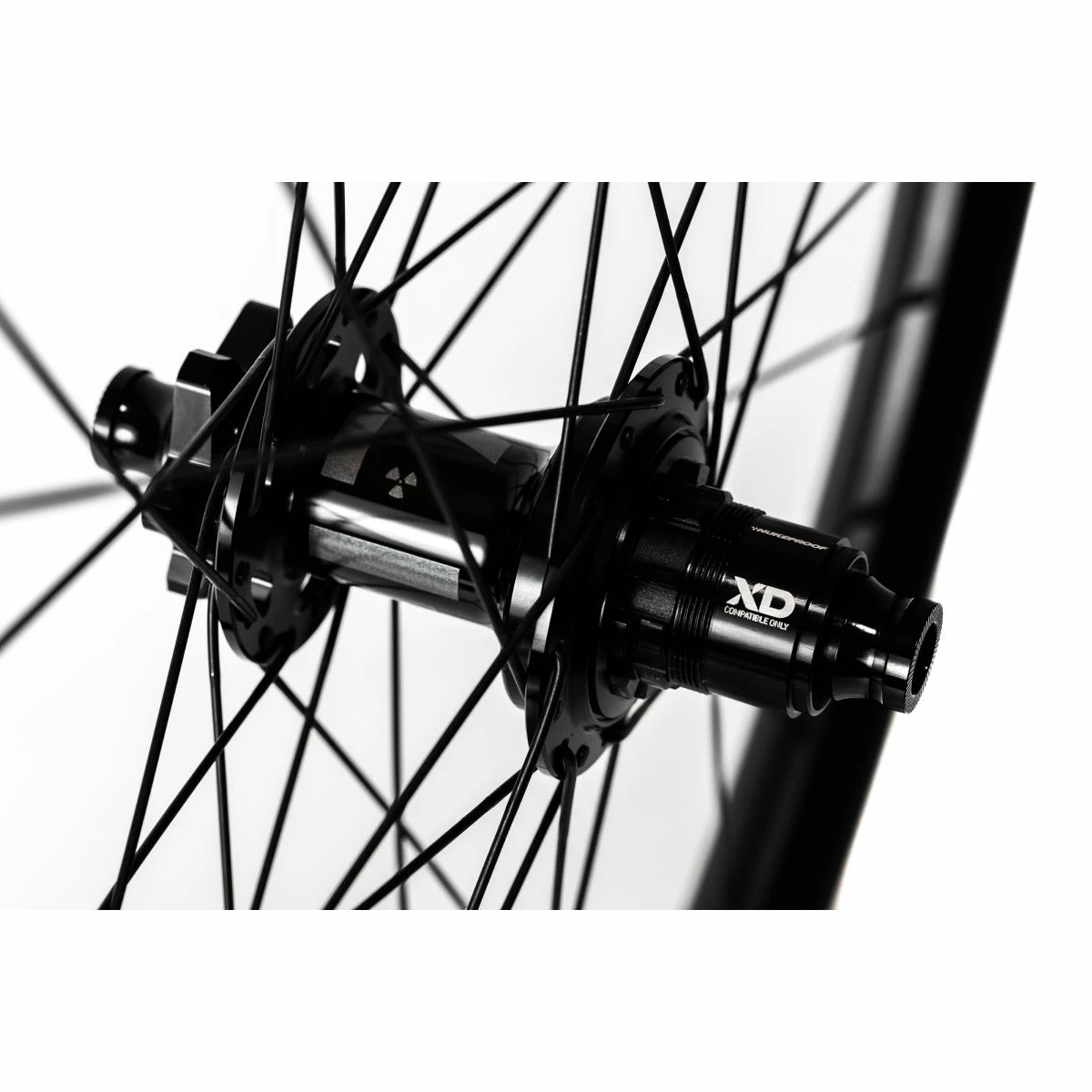

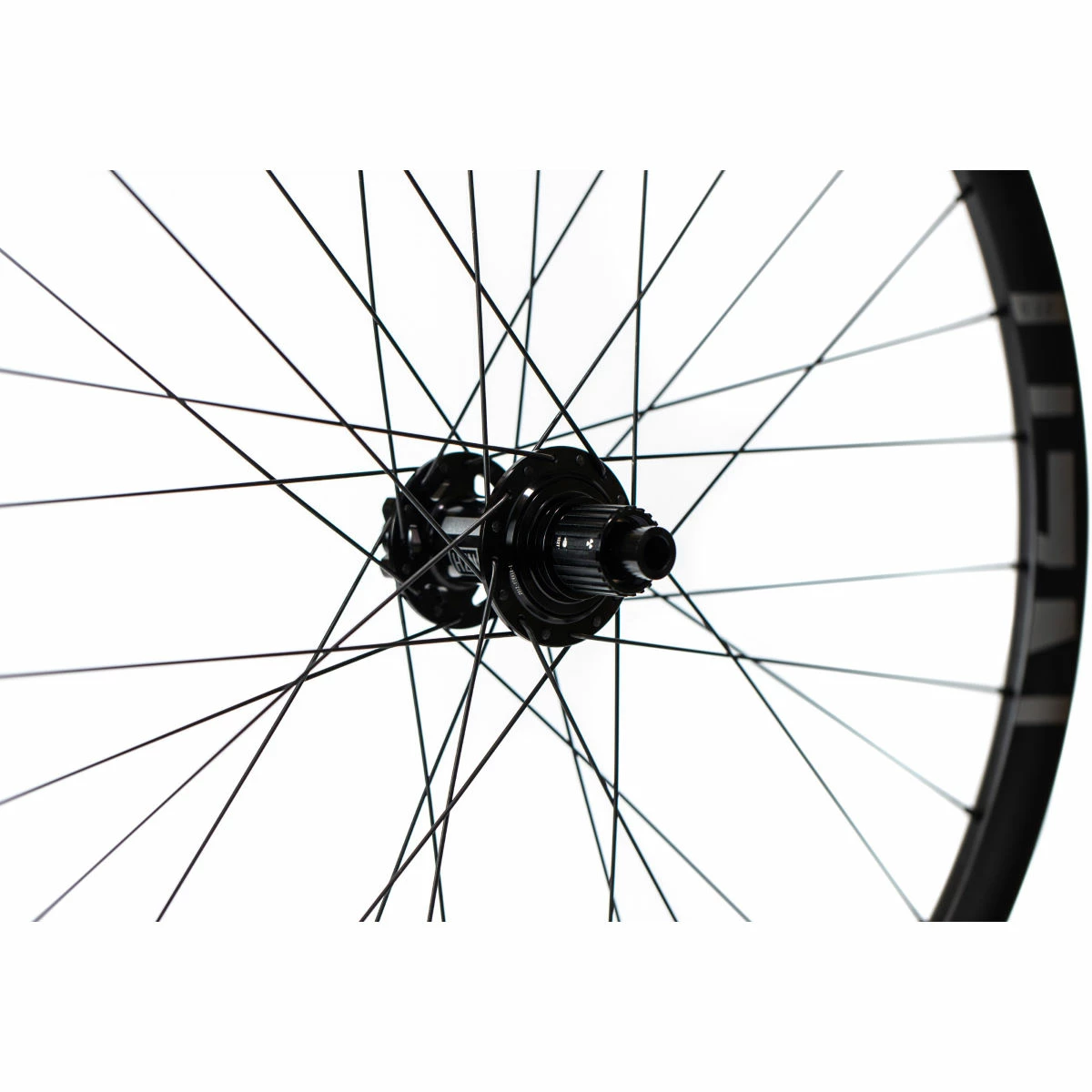

This MTB rear wheel features a revised Nukeproof Horizon V2 hub that now has 102 points of engagement and comes in a range of freehub options. Freehubs are also available separately and easily changeable if you choose upgrade your drivetrain in the future.

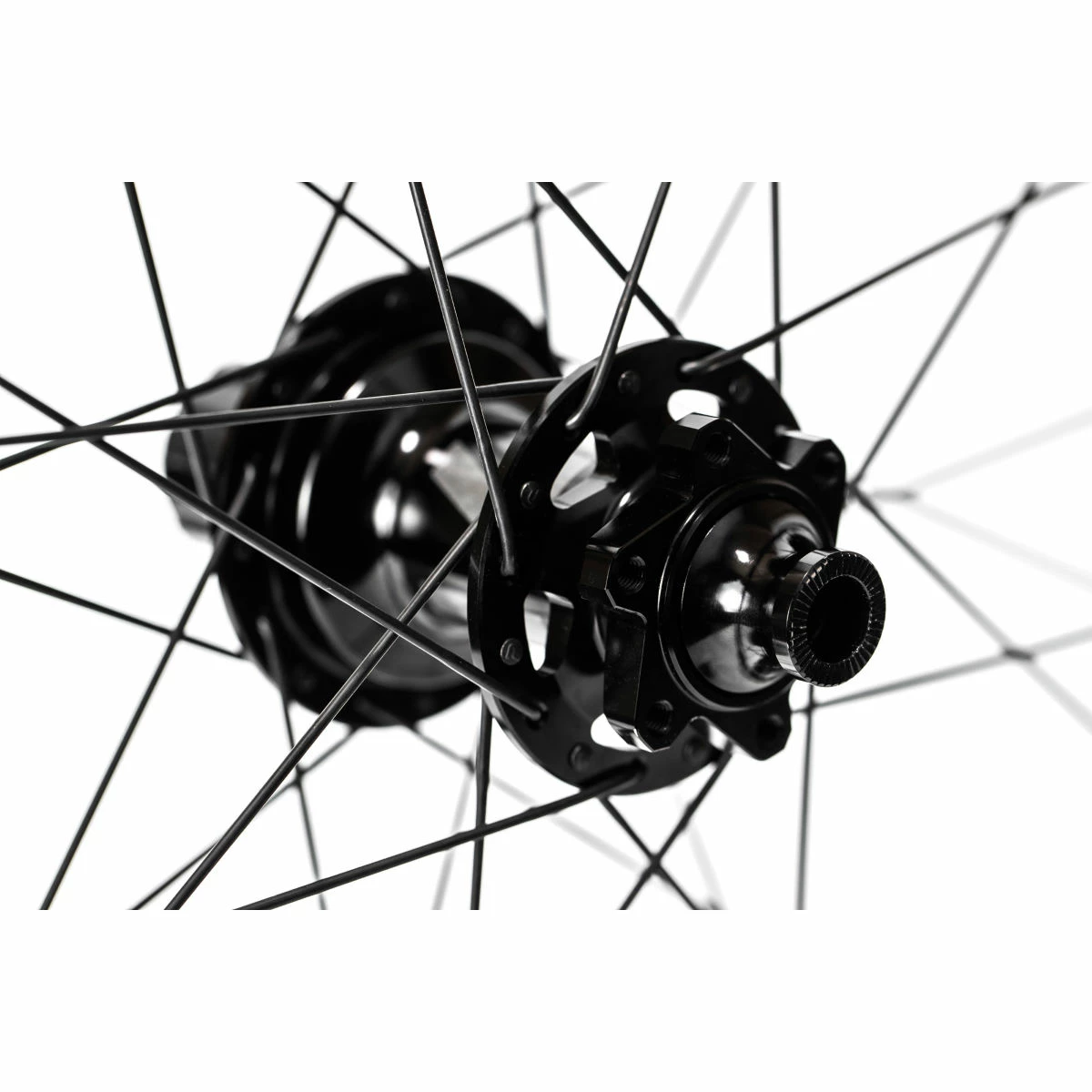

Nukeproof’s 142mm hub can be converted to 135mm QR and the 148mm hub can be converted to 141mm using end caps. The hub has also been machined to remove excess material and make it as strong and light as possible. Nukeproof has fitted these hubs with our louder pawls & springs, this gives the wheel a nice buzz as you head down the trail. If you prefer the quiet life, you can get the quieter ones which are available separately.

What’s Included?

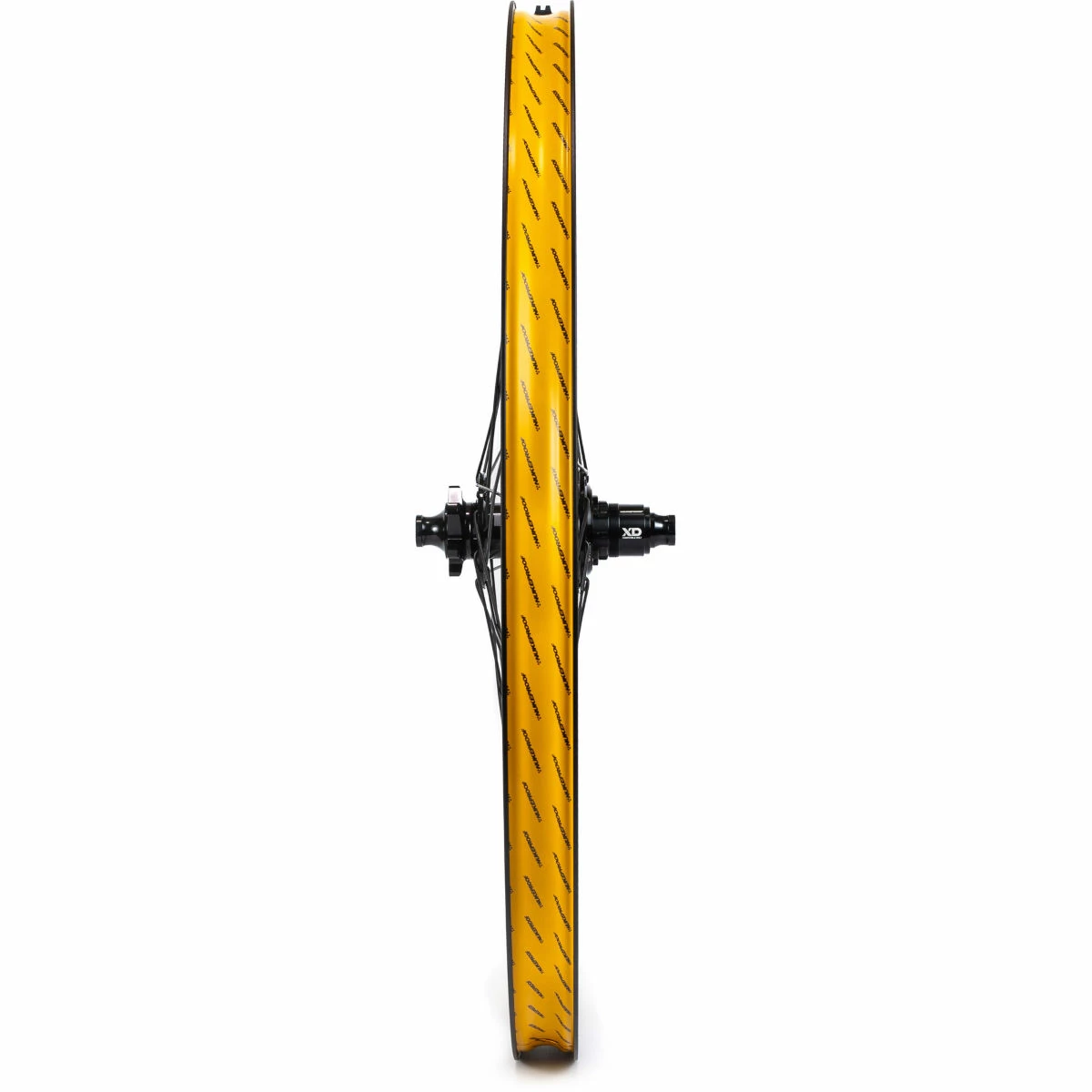

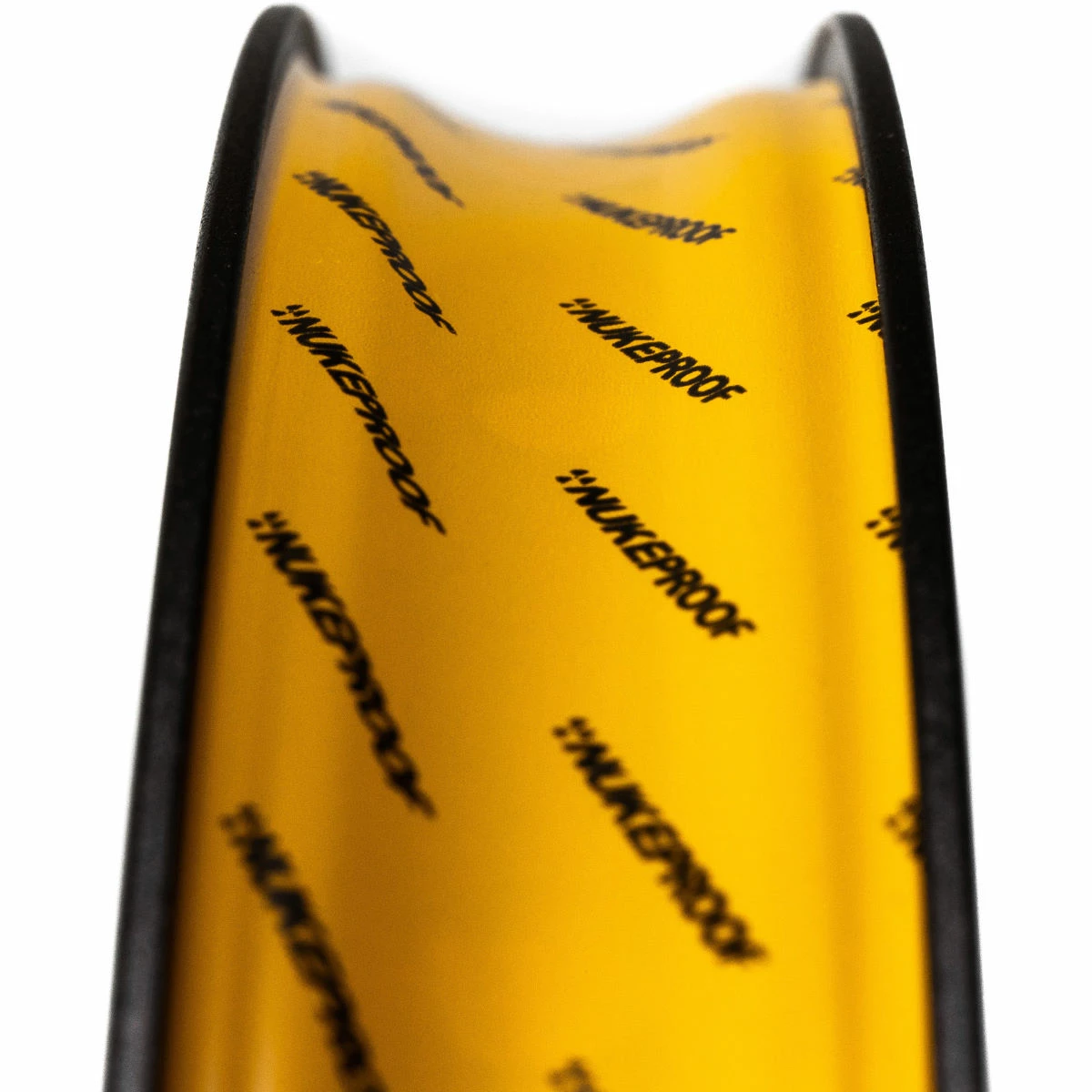

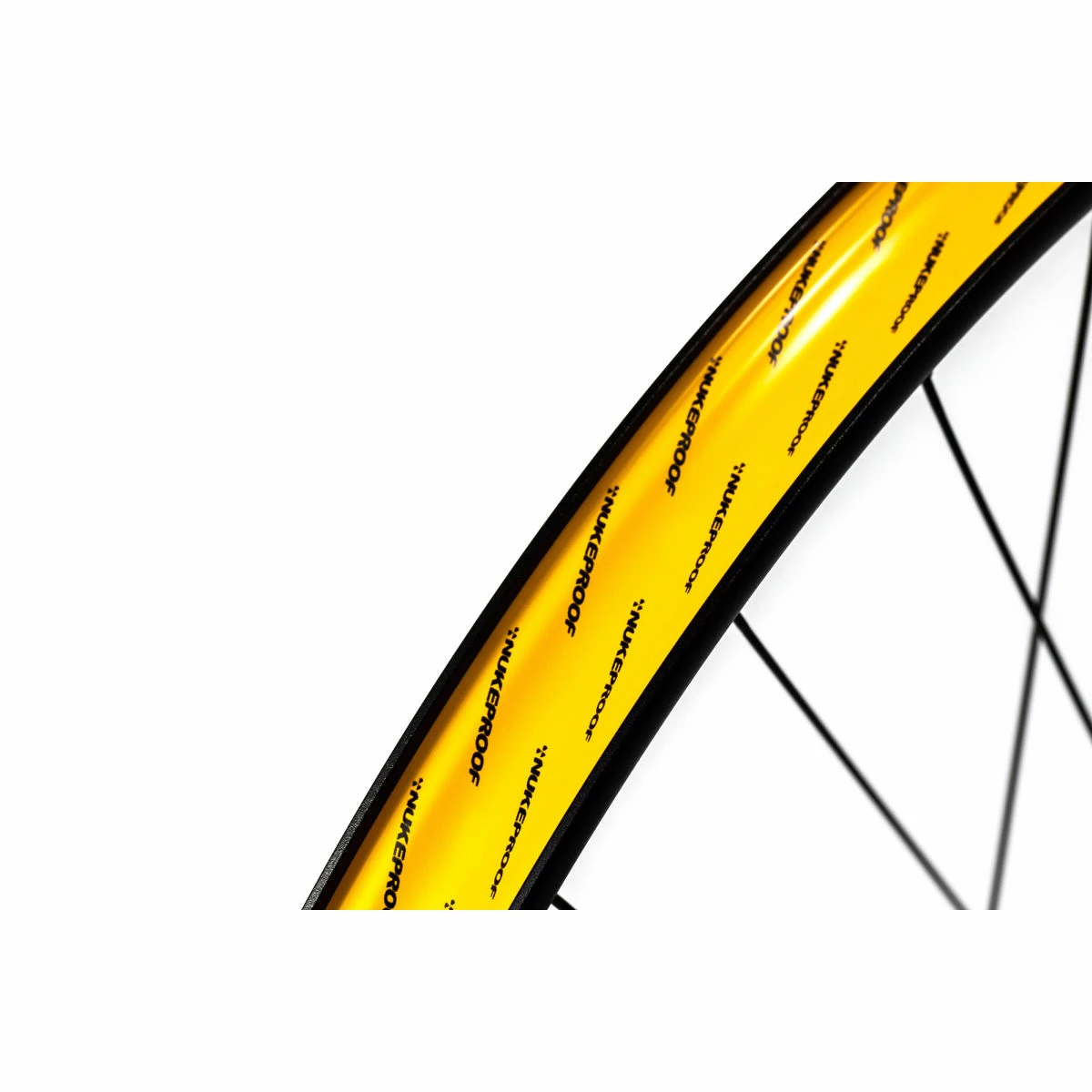

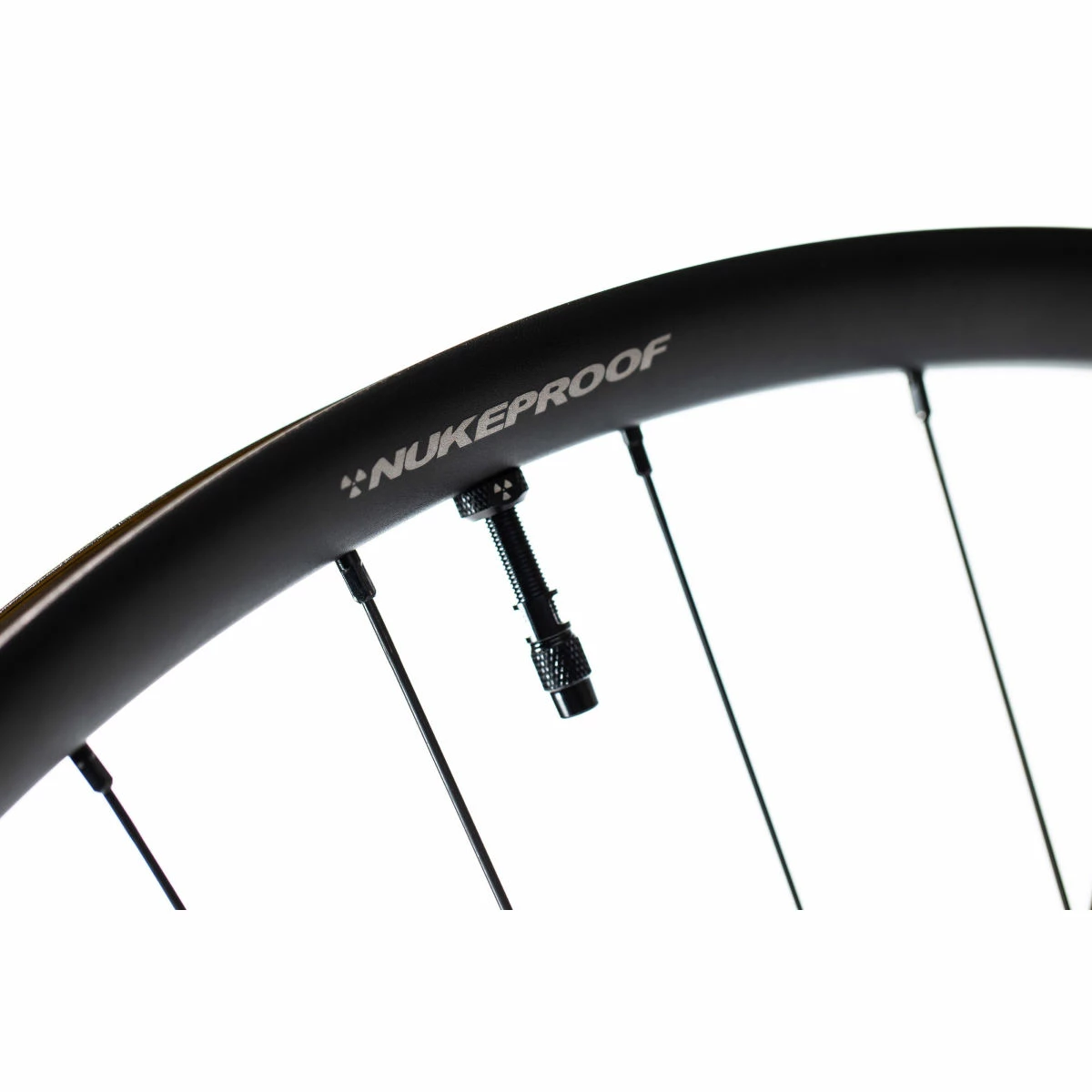

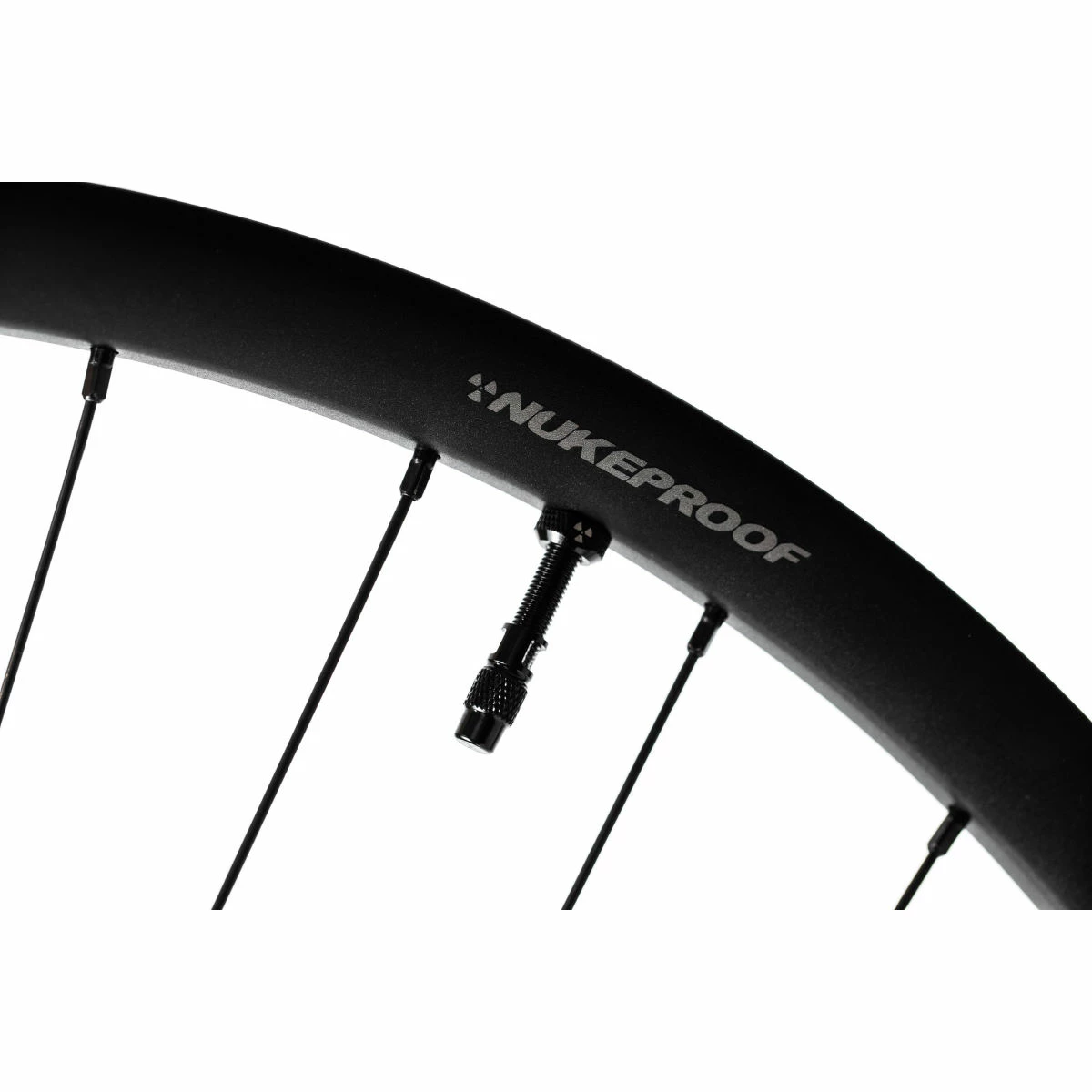

Wheels come taped with tubeless valve installed so all you need to do is fit your tyre and add sealant. The tubeless valve supplied is the new Nukeproof Horizon valve which is compatible with Nukeproof ARD and other tyre inserts aswell as the cap having a core remover built in.

A full range of spares are available to service your hub in the future.

Spoke length’s on Nukeproof wheels are the same regardless of spacing, the length changes with wheel size:

Wheel Size          Non Drive Side Spoke Length          Driveside Spoke Length

        27.5″                                  271                                             268

         29″                                    289                                             286

Conversion kits and replacement end caps available separately

Caps                              Nukeproof Part Number              Replacement or Conversion

Rear 135mm QR               NUKHORV2R135CAPS             Convert Non Boost 142mm hub to QR

Rear 141mm                     NUKHORV2R141BCAPS           Convert Boost 148mm hub to 141mm QR

Rear 142/148/157mm       NUKHORV2R148CAPS              Replacement caps for 142mm, 148mm and 157mm

Rear 150mm                     NUKHORV2R150CAPS              Replacement 150mm caps
